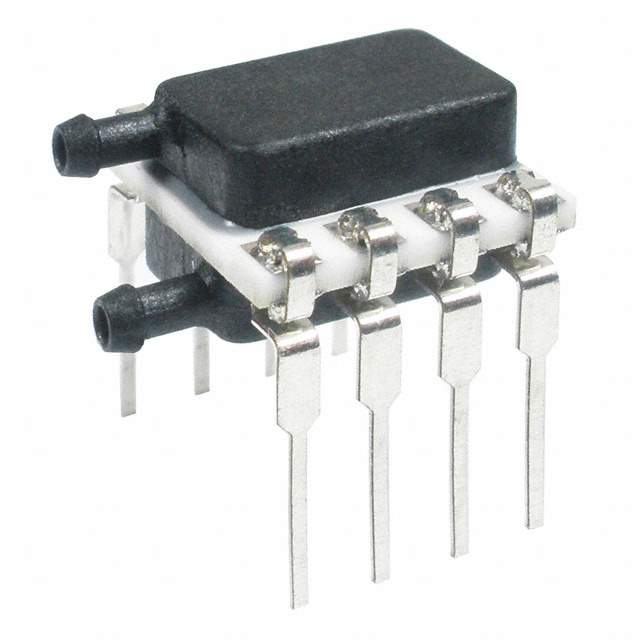

HSCDRRD160MDSA5 Real Image
Same model may have multiple batches, images only for reference.

HSCDRRD160MDSA5

Part No HSCDRRD160MDSA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 160MBAR DIFF 5V DIP / Pressure Sensor ±2.32PSI (±16kPa) Differential Male - 0.08" (1.93mm) Tube, Dual 12 b 8-DIP (0.524", 13.30mm), Dual Ports, Same Side
Datasheet
HSCDRRD160MDSA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® HSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±2.32PSI (±16kPa)
Output Type SPI
Output 12 b
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.08" (1.93mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±20.31PSI (±140kPa)
Temperature Range - Operating -20°C ~ 85°C
Package / Case 8-DIP (0.524", 13.30mm), Dual Ports, Same Side
Supplier Device Package 8-DIP
Base Product Number HSCDRRD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Standard Package 50
Win Source Part Number 1031640-HSCDRRD160MDSA5
Ultra Librarian 3D Model Ultra Librarian HSCDRRD160MDSA5 CAD Model

Description

The Honeywell TruStability® HSC differential pressure sensor with PC pin termination style and amplified output is an ideal choice for board mount applications.

  • Features: temperature compensation
  • Output: SPI output of 12 b with an accuracy of ±0.25%
  • Operating Pressure: ±2.32PSI (±16kPa)
  • Port Size: male - 0.08" (1.93mm) tube
  • Port Style: dual barbed
  • Maximum Pressure: ±20.31PSI (±140kPa)
  • Voltage Supply: 4.75V to 5.25V
  • Package: 8-DIP (0.524", 13.30mm), dual ports, same side package
  • Operating Temperature: -20°C to 85°C
