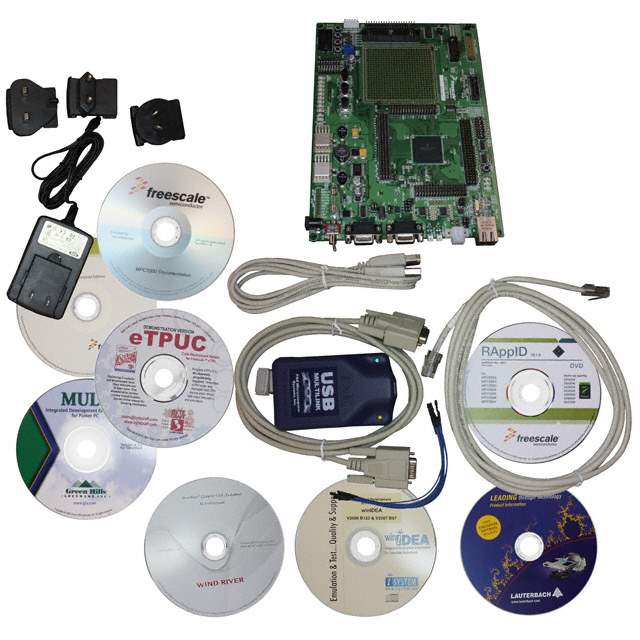

The NXP MPC5567EVBE Evaluation Board is a robust development platform designed for engineers and developers who are looking to explore the capabilities of NXP's advanced MPC5567 microcontroller. This microcontroller is part of the MPC5500 family that is well-suited for automotive and industrial applications requiring sophisticated real-time control and processing power.

Key Features of the MPC5567EVBE

• Powerful Processing Core: At the heart of the evaluation board is the MPC5567 microcontroller, which features a Power Architecture® core with a frequency of up to 132 MHz, providing high-performance computing capabilities.
• Memory: The board includes an ample amount of memory with integrated flash memory and RAM, facilitating complex software development and data processing without the need for external memory components.
• Connectivity: The MPC5567EVBE offers a range of communication interfaces including CAN, LIN, and Ethernet, making it suitable for networking applications within automotive and industrial systems.
• Flexible I/O Options: A variety of input/output options are available, including analog-to-digital converters (ADCs), timer modules, and digital I/O, allowing for versatile control and interfacing with external devices.
• On-board Debugging: The evaluation board comes with integrated JTAG support for debugging, which simplifies the development process and helps in quick identification and fixing of software issues.
• Expansion Capabilities: Expansion headers are provided to extend the board's capabilities with additional modules and custom hardware, offering scalability for various application needs.

Development Support

The MPC5567EVBE is supported by a suite of development tools including CodeWarrior Development Studio, providing a comprehensive software development environment. This includes an integrated development environment (IDE), compilers, debuggers, and other utilities that streamline the development process from initial coding to final testing and deployment.

Applications

With its advanced features and flexible I/O options, the MPC5567EVBE is ideal for a wide range of applications, particularly in the automotive sector for engine management, transmission control, and body electronics. It is also suitable for industrial control systems, robotics, and other applications requiring high-performance real-time control.
