Product Overview: MCIMX503EVM8B

The MCIMX503EVM8B is a state-of-the-art microprocessor from NXP Semiconductors, designed to deliver superior performance and efficiency for a wide range of applications. This product is part of the i.MX50 family, which is known for its advanced multimedia, connectivity, and power management features. It is particularly well-suited for use in eReaders, industrial control, medical devices, and other smart systems that require a high level of integration and energy efficiency.

Key Features

• Processor Core: The MCIMX503EVM8B is built around an ARM Cortex-A8 core, which operates at a speed of up to 800 MHz. This core provides the computational power necessary to handle complex tasks and enables the smooth operation of the operating system and applications.
• Graphics: It includes an integrated 2D and 3D graphics processor, which allows for rich graphical user interfaces and immersive visual experiences. This makes it ideal for devices where user interaction and display quality are critical.
• Memory: With support for various types of external memory, including DDR2 and LPDDR2, the MCIMX503EVM8B ensures flexible memory solutions to meet the requirements of diverse applications.
• Connectivity: A range of connectivity options is available, including high-speed USB 2.0, UART, SPI, and I2C interfaces. This connectivity allows for easy integration with peripherals and other components in complex systems.
• Power Efficiency: The processor is designed with power efficiency in mind, featuring dynamic voltage and frequency scaling, as well as a range of low-power modes. This helps to extend battery life in portable devices and reduce energy consumption in all applications.

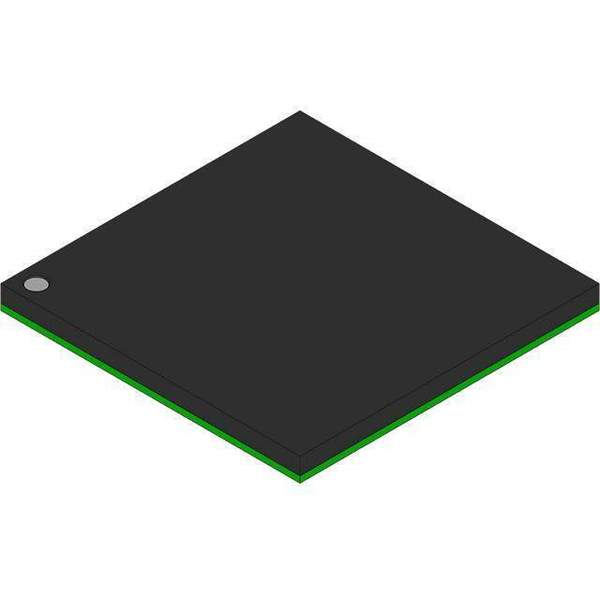

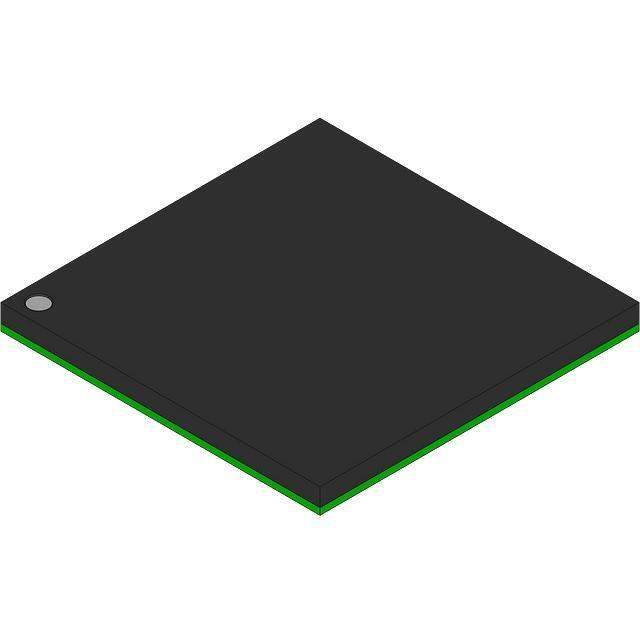

• Package: It is offered in a 529-pin BGA package, which provides a compact footprint for space-constrained applications while still allowing for sufficient I/O and interface options.

Applications

The versatility of the MCIMX503EVM8B makes it suitable for a variety of applications, including but not limited to:

• Portable and wearable devices
• eReaders and educational electronics
• Industrial control systems
• Medical monitoring and diagnostic equipment
• Smart home devices and IoT solutions

With its combination of performance, graphics capabilities, and energy efficiency, the MCIMX503EVM8B from NXP is an excellent choice for designers looking to create sophisticated and user-friendly electronic products.
