NXP MC9S08DV48AMLH Microcontroller

The NXP MC9S08DV48AMLH is a high-performance microcontroller unit (MCU) that is part of the S08D family, designed to cater to a wide range of embedded applications. This 8-bit MCU is built around the HCS08 central processing unit (CPU) and is packed with a rich set of features that make it ideal for industrial control, automotive, and consumer electronics applications.

The MC9S08DV48AMLH operates at a maximum frequency of 40 MHz, providing a balance of processing power and energy efficiency. Its core is capable of executing up to 20 million instructions per second (MIPS) at 40 MHz, which allows for quick data processing and real-time response in demanding applications.

This microcontroller offers 48 KB of on-chip flash memory, which is ample space for storing application code and data. The flash memory is partitioned into blocks, allowing for flexible memory management and in-circuit programming. Additionally, there is 2 KB of RAM for temporary data storage and efficient handling of complex operations.

One of the key features of the MC9S08DV48AMLH is its robust on-chip integration. It includes a range of peripherals such as an 8-channel 10-bit analog-to-digital converter (ADC), which is essential for interfacing with analog sensors and converting their signals into digital data for processing. The MCU also has two analog comparators, enabling it to perform quick analog signal comparison without the need for external components.

Communication interfaces are crucial in modern embedded systems, and the MC9S08DV48AMLH comes equipped with multiple options, including an I2C bus, a serial peripheral interface (SPI), and a serial communication interface (SCI). These interfaces allow for easy connection to other microcontrollers, sensors, and peripheral devices, facilitating complex and interconnected systems.

For enhanced system reliability, the MCU features a watchdog timer, which helps in recovering from software errors or malfunctions. There is also a low-voltage detection module to monitor power supply levels and ensure stable operation under varying power conditions.

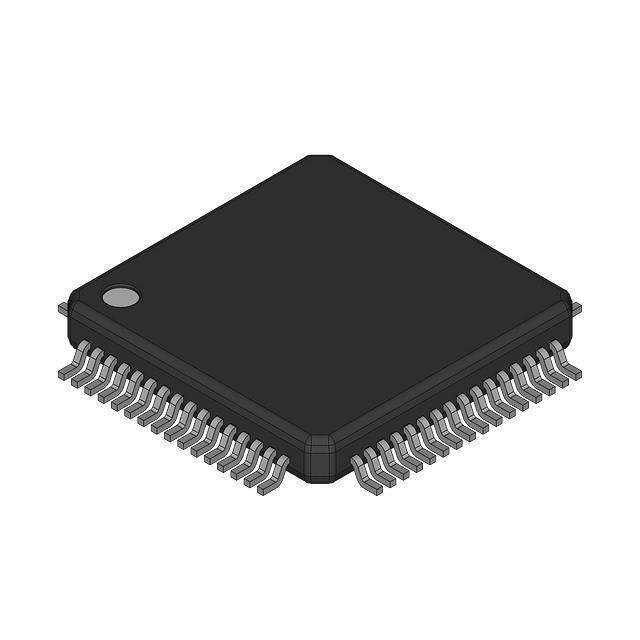

The MC9S08DV48AMLH is housed in a 64-pin LQFP package, which is suitable for space-constrained applications while still offering enough pins for input/output (I/O) and connectivity. This microcontroller is a reliable choice for designers and engineers looking to develop sophisticated embedded systems with stringent performance and space requirements.
