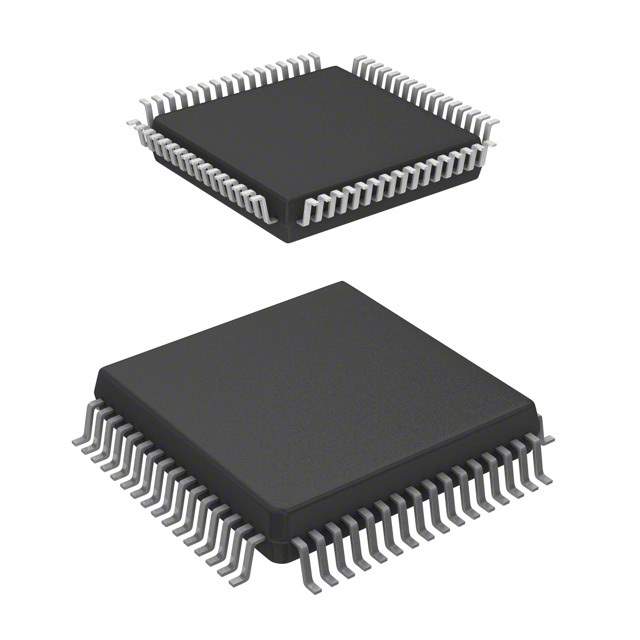

NXP MC9S08AC48CFUE Microcontroller

The NXP MC9S08AC48CFUE is a highly integrated and versatile 8-bit microcontroller designed to cater to a wide range of applications requiring efficient and reliable control operations. This powerful MCU is part of the S08 family, which is renowned for its robust architecture, enhanced performance, and low-power consumption, making it an ideal choice for industrial, automotive, and consumer electronics.

Key Features

• Core: The device is built around the HCS08 core, which operates at a maximum frequency of 40 MHz, offering quick and responsive processing capabilities for time-sensitive tasks.
• Flash Memory: It comes equipped with 48KB of on-chip flash memory, providing ample space for application code storage and promoting flexibility in software development and updates.
• RAM: With 2KB of Random Access Memory (RAM), the microcontroller can handle complex operations and data-intensive tasks without compromising performance.
• Input/Output: The MC9S08AC48CFUE features a rich set of I/O options including multiple general-purpose input/output (GPIO) pins that allow for versatile interface with external peripherals and sensors.
• Timers: A variety of timing and control modules, including an 8-channel, 16-bit timer, and a 2-channel, 16-bit timer, provide precision timing for a range of tasks such as pulse width modulation (PWM) and event counting.
• Analog-to-Digital Converter: An integrated 10-bit ADC with multiple channels enables the microcontroller to convert analog signals into digital data for processing, suitable for sensor interfacing and data acquisition applications.
• Communication Interfaces: The device supports multiple communication protocols including I²C, SPI, and SCI, allowing for seamless communication with other microcontrollers, computers, and networked devices.
• Operating Voltage: It operates within a voltage range of 1.8V to 3.6V, ensuring energy efficiency and compatibility with low-power circuits.
• Package: The MCU is available in a 64-QFN package, which is compact and suitable for space-constrained applications.

Applications

The MC9S08AC48CFUE is an adaptable microcontroller that can be employed in a variety of applications such as automotive control systems, home automation, industrial control, medical devices, and consumer electronics. Its robust feature set supports complex algorithms and control processes, while its low-power operation makes it an excellent choice for battery-operated devices.

Overall, the NXP MC9S08AC48CFUE microcontroller is a reliable and cost-effective solution that delivers high performance, extensive integration, and the flexibility required for today's demanding electronic applications.
