MC34PF3000A2EP - Power Management Integrated Circuit by NXP Semiconductors

The MC34PF3000A2EP is a sophisticated power management integrated circuit (PMIC) designed by NXP Semiconductors, tailored to meet the requirements of high-performance processing platforms. This PMIC is particularly suitable for automotive applications, offering a robust power solution that ensures reliable operation in the demanding automotive environment.

Key Features:

• Multiple Output Configurations: The device provides a versatile array of power outputs, including buck and boost regulators, LDOs (Low Dropout Regulators), and switchable outputs to power various subsystems efficiently.
• Advanced Power Control: With an I2C interface for system control, the MC34PF3000A2EP allows for dynamic voltage scaling, power sequencing, and fault monitoring, enabling intelligent power management strategies.
• Automotive Grade: Designed to meet the stringent AEC-Q100 standards for automotive qualification, this PMIC ensures high reliability and performance under extreme conditions.
• Integrated Safety Features: The device includes a plethora of safety features such as under-voltage lockout, over-voltage protection, over-current protection, and thermal shutdown, contributing to system robustness and safety.
• Configurable Options: It offers programmable voltage settings and sequencing options, providing design flexibility to match specific system requirements.

Applications:

The MC34PF3000A2EP is designed to power a wide range of automotive applications, including infotainment systems, advanced driver assistance systems (ADAS), and telematics. Its robust design and flexible power management capabilities make it an ideal choice for ensuring the reliability and efficiency of electronic systems in vehicles.

Technical Specifications:

• Input Voltage Range: 2.8V to 5.5V
• Multiple Buck Converters with 1.0A to 4.0A output current
• Boost Regulator with up to 2.0A output current
• Multiple LDOs with various output current ratings
• Switching Frequency: 2.1MHz (typical)
• Operating Temperature Range: -40°C to +125°C

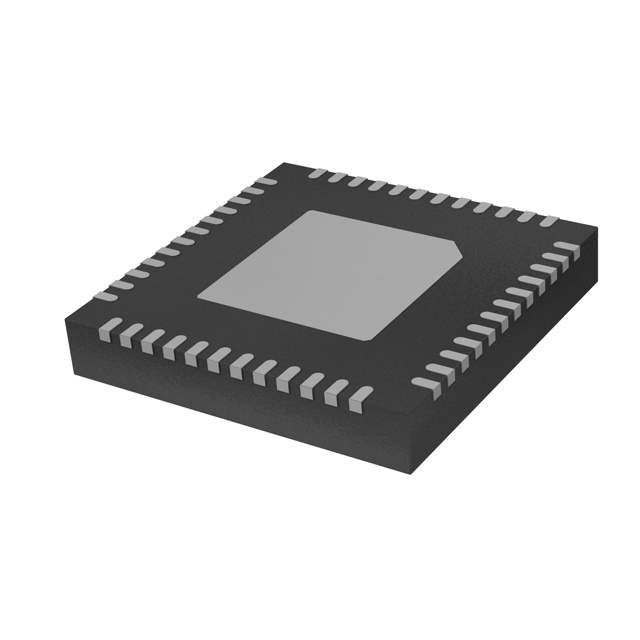

• Packaging: 56-QFN (8x8mm) EP

Overall, the MC34PF3000A2EP from NXP Semiconductors is a powerful and reliable power management solution, engineered to drive the next generation of automotive electronics with unmatched precision and safety.
