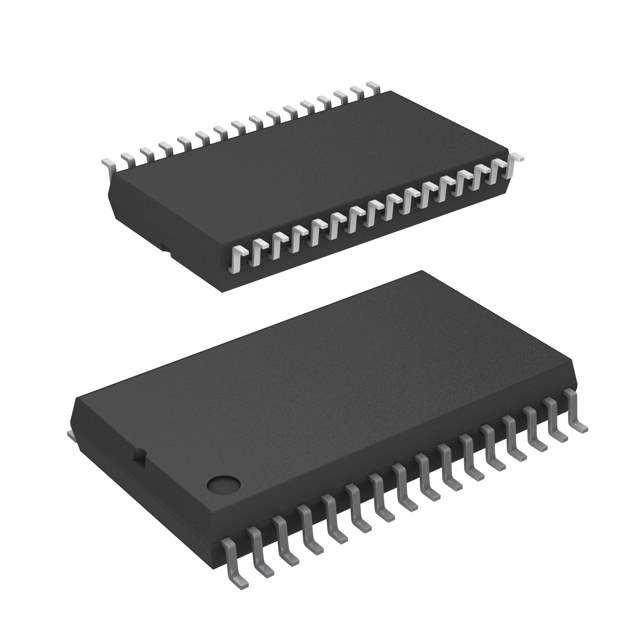

The NXP MC34931EK is a versatile and high-performance H-Bridge motor driver designed to efficiently control DC motors. This robust component is an ideal choice for automotive and industrial applications that require precise motor control such as power steering, engine cooling fans, and electric pumps. The device is housed in a compact package, making it suitable for space-constrained applications while providing a powerful solution for motor control.
The MC34931EK supports a wide range of supply voltages from 5.5V up to 28V, allowing for flexible integration into various system designs. With a continuous current rating of up to 5A and peak current capabilities of up to 10A, this motor driver can handle a broad spectrum of motor sizes and types. The inclusion of internal control logic, charge pump, current sensing, and protection features make this driver a reliable and self-contained solution for motor control.
Protection features of the MC34931EK include under-voltage lockout, overcurrent protection, thermal shutdown, and cross-conduction prevention. These features ensure the long-term reliability of the motor driver by protecting it and the motor from various potential fault conditions. The device also provides diagnostic feedback that can be used by the controlling system to monitor the health and performance of the motor driver.
The NXP MC34931EK is easy to interface with microcontrollers and is compatible with 3.3V and 5V logic levels, providing versatility for various control architectures. The H-Bridge configuration allows for forward and reverse motor control, as well as braking and high impedance states for complete control over motor operation.
In conclusion, the NXP MC34931EK H-Bridge Motor Driver is a powerful and reliable component that offers advanced features for sophisticated motor control applications. Its compact design, high current capability, and extensive protection features make it an excellent choice for designers looking to create efficient and durable motor control systems.
