The MC33887AVW from NXP Semiconductors is a versatile and robust motor driver integrated circuit (IC) designed for automotive and industrial applications. This powerful IC can control a DC motor's direction and speed, providing a compact and efficient solution for a variety of motor control needs.
Key Features
- High Current Capability: The MC33887AVW can handle continuous current up to 5A, with peak current capabilities of 10A, making it suitable for driving small to medium-sized motors.
- Integrated Control Functions: It includes features such as current limiting, overcurrent protection, and thermal shutdown, ensuring safe operation under a range of conditions.
- H-Bridge Output: The IC incorporates an H-bridge output stage, which allows for bidirectional control of the motor, enabling both clockwise and counterclockwise rotation.
- Multiple Diagnostic Functions: Built-in diagnostic features provide feedback on the status of the motor and the driver, including load current sense, under-voltage, and over-temperature detection.
Applications
The MC33887AVW motor driver is ideal for a wide array of applications, including but not limited to:
- Automotive systems such as power steering, throttle control, and engine cooling fans
- Industrial automation systems requiring precise motor control
- Robotics and automated guided vehicles (AGVs)
- Consumer electronics that involve motorized movements
Technical Specifications
Parameter
Value
Supply Voltage
5V to 28V
Output Current (Continuous)
5A
Output Current (Peak)
10A
Operating Temperature
-40°C to +125°C

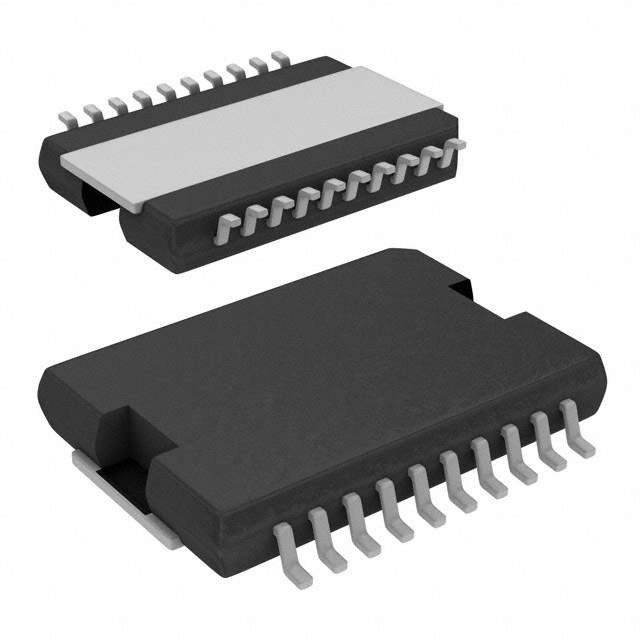

Package
HSSOP
Overall, the MC33887AVW motor driver from NXP is a reliable and efficient solution for controlling DC motors in a range of complex and demanding applications.
