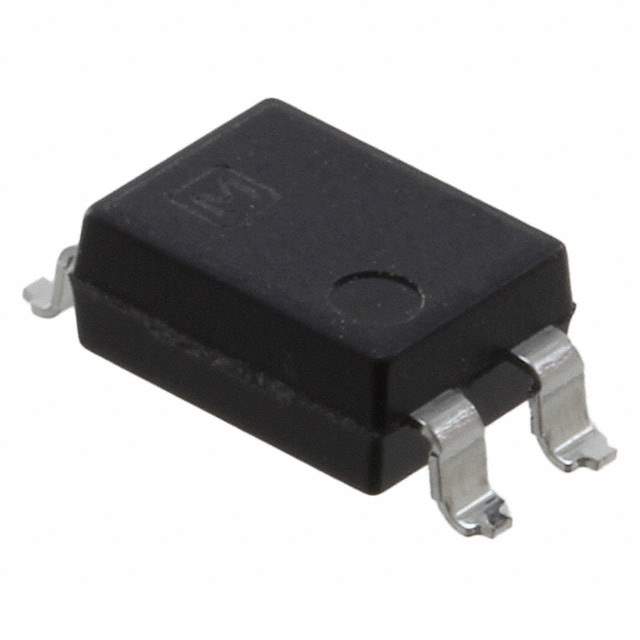

APT1211WAY Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Panasonic Electric Works
Packaging Reel package
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 500V/μs
Current - LED Trigger (Ift) (Maximum) 10mA
Current - On State (It (RMS)) (Maximum) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Maximum)
Voltage - Forward (Vf) (Typ) 1.21V
Current - DC Forward (If) (Maximum) 50mA
Operating Temperature Range -40°C ~ 100°C
Mounting Style Through Hole
Package 4-DIP (0.400", 10.16mm)
Manufacturer Package 4-DIP
Approvals cUR, VDE
Win Source Part Number 768666-APT1211WAY
Popularity Medium
Supply and Demand Status Limited
Family Name APT1211WAY
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian APT1211WAY CAD Model

Description

The Panasonic Electric Works APT1211WAY is a 1-channel triac output optocoupler with a voltage rating of 600V and isolation voltage of 5000Vrms.

  • Features: Zero crossing circuit
  • Turn-on Time: 100μs
  • Current Hold: 3.5mA
  • Operating Temperature Range: -40°C to 100°C
  • Approvals: cUR, VDE
  • Package: 4-DIP
  • Mounting Type: Through hole
