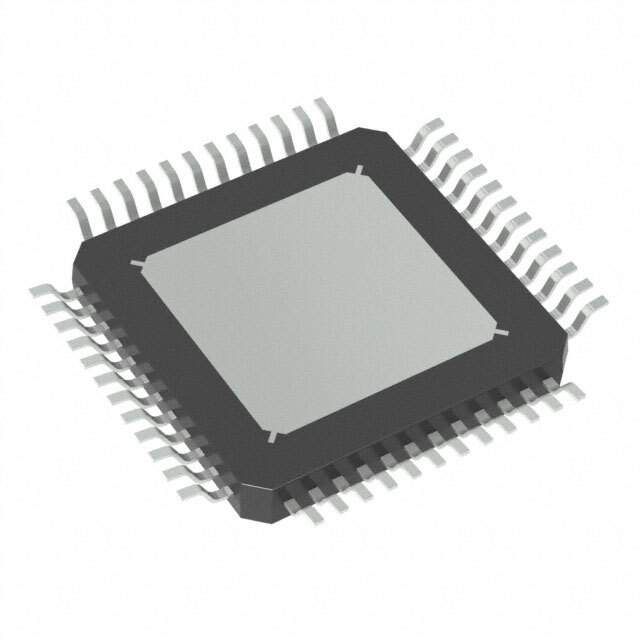

The NXP MC33814AER2 is a sophisticated engine control integrated circuit designed for automotive applications. This advanced IC is specifically tailored for managing the fuel injection and ignition systems in internal combustion engines, offering an unparalleled level of precision and efficiency.

Key Features

• Fuel Injection Control: The MC33814AER2 provides precise control over fuel injection, ensuring optimal engine performance and fuel economy. It supports various injection modes, catering to a wide range of engine types and configurations.
• Ignition System Management: With integrated ignition control, this IC can manage the timing and intensity of the spark, contributing to better combustion and reduced emissions.
• Multiple Output Channels: It features several output drivers for fuel injectors, ignition coils, and relays, providing a comprehensive solution for engine control.
• Diagnostic and Protection Features: The MC33814AER2 is equipped with advanced diagnostic functions to monitor system performance and protect against faults, ensuring reliability and safety.
• Communication Interfaces: It includes a Serial Peripheral Interface (SPI) for communication with the main microcontroller, allowing for easy integration and data exchange.

Applications

The NXP MC33814AER2 is ideal for a range of automotive applications, particularly those requiring precise control over engine functions, such as:

• Gasoline and diesel engine vehicles
• Motorcycles and scooters
• Small engine-powered machinery

Technical Specifications

This integrated circuit is built to withstand the harsh conditions of automotive environments, featuring a wide operating temperature range and robust packaging. Its technical specifications are designed to meet the stringent requirements of modern engine control systems.

For detailed technical specifications, datasheets, and support resources, please visit NXP's official website or contact their customer support team.
