The NXP LPC1777FBD208,551 is a robust ARM Cortex-M3 based microcontroller that is designed to meet the demands of embedded applications requiring high levels of processing power and low power consumption. This microcontroller is part of the LPC1700 series, which is known for its high performance, reliability, and a wide range of integrated features.

Key Features

• CPU: ARM Cortex-M3 processor, running at frequencies of up to 120 MHz.
• Memory: Includes 512 KB of flash memory and 64 KB of RAM, providing ample space for complex applications and data storage.
• Digital Peripherals: Features several communication interfaces, including USB 2.0 Full-Speed, CAN, UART, I2C, SPI, and more, facilitating versatile connectivity options.
• Analog Peripherals: Equipped with a 12-bit ADC and a 10-bit DAC, allowing for precise analog signal processing.
• Timer Functions: Multiple timers, including a motor control PWM and a Quadrature Encoder interface, are ideal for industrial control and automation.

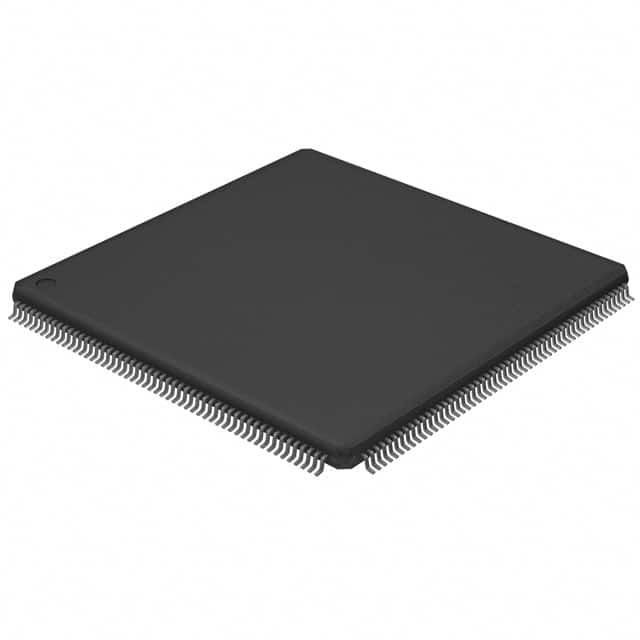

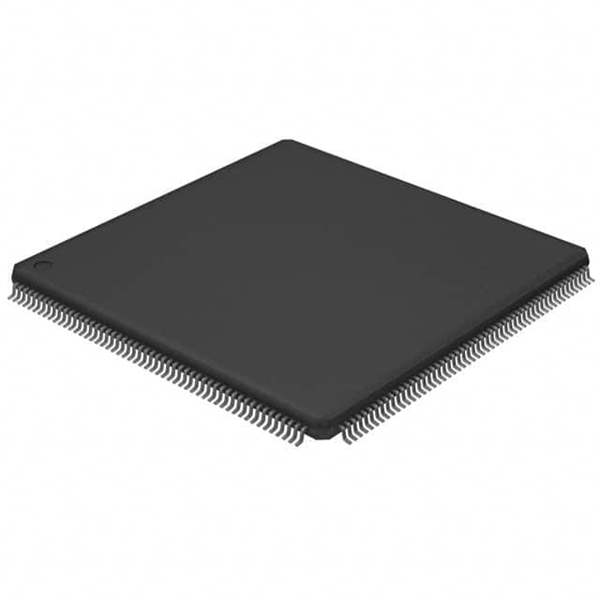

• Package: Available in a 208-pin LQFP package, which is suitable for space-constrained applications.

Advanced Features

This microcontroller also boasts an array of advanced features that enhance its performance and ease of use. With an on-chip Ethernet MAC, it is well-suited for networked applications. Its EMC-compliant design, with a static memory controller supporting eight chip selects and configurable timing, allows for the direct connection of a wide range of memory devices and other peripherals.

Applications

The LPC1777FBD208,551 is designed for a diverse range of applications, including industrial control systems, networking, motor control, embedded audio, and medical devices. Its combination of processing power, memory capacity, and rich peripheral set makes it an excellent choice for sophisticated and multi-faceted projects.

Support and Resources

NXP provides extensive support for the LPC1777FBD208,551 with a comprehensive suite of development tools, software libraries, and documentation, ensuring developers have everything they need to bring their projects to life efficiently.
