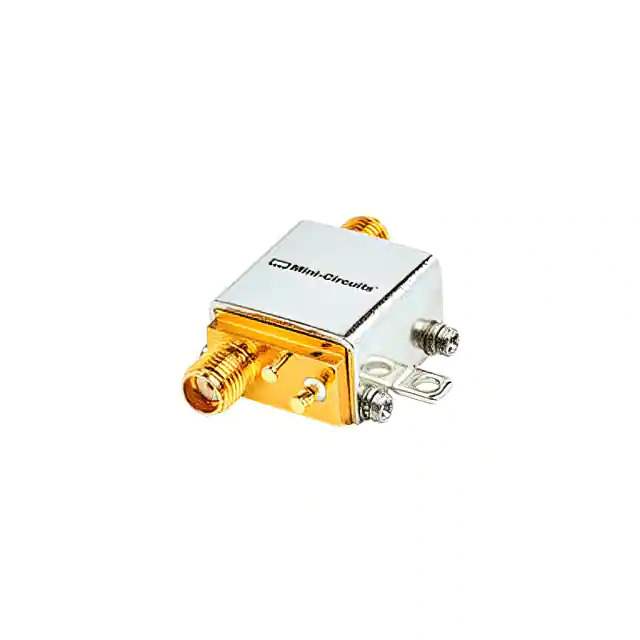

ZX60-V62+ Real Image
Same model may have multiple batches, images only for reference.

ZX60-V62+

Part No ZX60-V62+
Manufacturer Mini-Circuits
Catalog RF Amplifiers
Description IC RF AMP CATV 50MHZ-6GHZ SMA
Datasheet
ZX60-V62+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tray
Product Status Active
Frequency 50MHz ~ 6GHz
P1dB 19.7dBm
Gain 14.4dB
Noise Figure 5.4dB
RF Type CATV, DBS, LTE, Radar, SATCOM, Wireless LAN
Voltage - Supply 4.8V ~ 5.2V
Current - Supply 82mA
Test Frequency 50MHz
Mounting Type Chassis Mount
Package / Case Module, SMA Connectors
Base Product Number ZX60
Standard Package 10 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8543.70.8000
Win Source Part Number 1106406-ZX60-V62+
Ultra Librarian 3D Model Ultra Librarian ZX60-V62+ CAD Model

Description

The 1106406-ZX60-V62+ is an RF Amplifier designed for applications in the RF and Wireless category and is manufactured by Mini-Circuits.

  • Applications: CATV, DBS, LTE, Radar, SATCOM, and Wireless LAN
  • Frequency Range: 50MHz to 6GHz
  • Gain: 14.4dB
  • Noise Figure: 5.4dB
  • Supply Voltage: 4.8V to 5.2V
  • Current Consumption: 82mA
  • Package: Module with SMA connectors
  • Product Status: Active
