Overview of NXP 74LVC1G07GF/S500132

The NXP 74LVC1G07GF/S500132 is a high-performance, single buffer with open-drain output from the 74LVC family of low-voltage CMOS devices. Designed for use in 3.3V and 5V systems, it is a versatile component that can be utilized in a wide array of digital applications. Its open-drain output allows for wired-OR logic configurations, making it particularly useful in interfacing and level-shifting operations.

Key Features

• High-Speed Performance: The device operates at a voltage range of 1.65V to 5.5V, which allows for interfacing with both 3.3V and 5V logic levels without the need for level shifters, providing seamless integration in mixed-voltage environments.
• Low Power Consumption: It is optimized for low power consumption, making it an ideal choice for power-sensitive applications.
• Open-Drain Output: The open-drain output enables the device to perform wired-OR logic functions, which is beneficial in various applications such as overvoltage detection and bus signaling.
• High Impedance: The input can be driven from either 3.3V or 5V devices, which means signals from higher voltage systems can be accepted without the risk of damage.
• ESD Protection: The device features input and output over-voltage protection, ensuring robust performance against electrostatic discharge and other voltage-induced stress.

Applications

The 74LVC1G07GF/S500132 is suitable for a broad range of applications, most notably:

• Logic level translation
• Signal buffering
• Line driving
• Interfacing in multi-voltage systems

Package and Quality

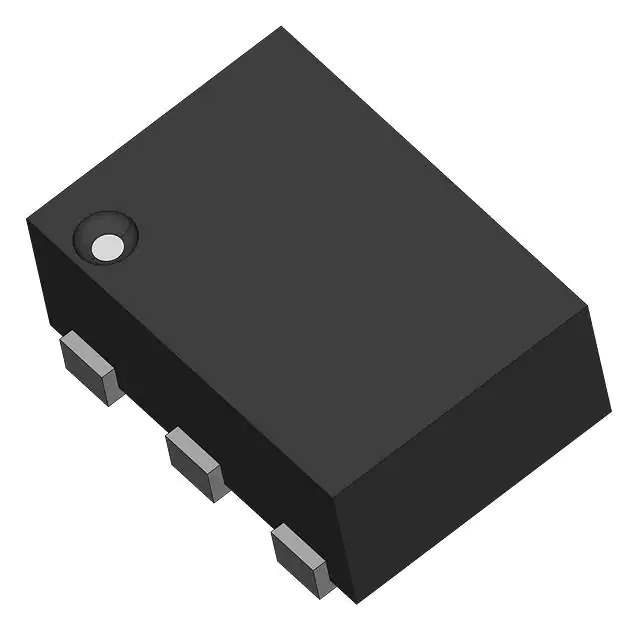

Encased in a small footprint package, the product is designed for space-constrained applications. It is also compliant with the strict quality standards set by NXP, ensuring reliability and performance consistency.

With its combination of features, the NXP 74LVC1G07GF/S500132 is an excellent choice for designers looking for a buffer with an open-drain output capable of interfacing different logic levels in their digital circuit designs.
