Same model may have multiple batches, images only for reference.

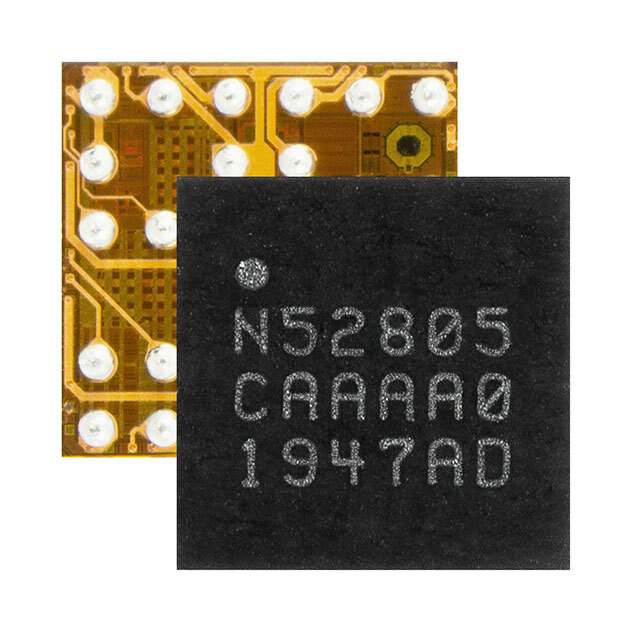

NRF52805-CAAA-R7 Real Image
Same model may have multiple batches, images only for reference.

NRF52805-CAAA-R7

Part No NRF52805-CAAA-R7
Manufacturer Nordic Semiconductors
Catalog RF Receivers
Description IC RF TXRX+MCU BLUETOOTH 5.2 / IC RF TxRx + MCU Bluetooth Bluetooth v5.2 2.4GHz
Datasheet
NRF52805-CAAA-R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Nordic Semiconductor ASA
Package Tape & Reel
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v5.2
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 4dBm
Sensitivity -97dBm
Memory Size 192kB Flash, 24kB RAM
Serial Interfaces ADC, GPIO, I²S, SPI, UART
GPIO 10
Voltage - Supply 1.7V ~ 3.6V
Current - Receiving 4.6mA
Current - Transmitting 4.6mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Base Product Number NRF52805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Other Names 1490-NRF52805-CAAA-R7CT,1490-NRF52805-CAAA-R7TR,1490-NRF52805-CAAA-R7DKR
Standard Package 1,500
Win Source Part Number 960982-NRF52805-CAAA-R7
Ultra Librarian 3D Model Ultra Librarian NRF52805-CAAA-R7 CAD Model

Description

The Nordic Semiconductor NRF52805-CAAA-R7 is a high-performance RF transceiver IC that operates in the 2.4GHz frequency range. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Frequency Range: 2.4GHz
  • Protocol: Bluetooth v5.2
  • Data Rate: Up to 2Mbps
  • Memory Size: 192kB Flash and 24kB RAM
  • Power Output: 4dBm
  • Sensitivity: -97dBm
  • Current Consumption: 4.6mA (receiving and transmitting)
  • Voltage Supply Range: 1.7V to 3.6V
  • Operating Temperature: -40°C to 85°C
