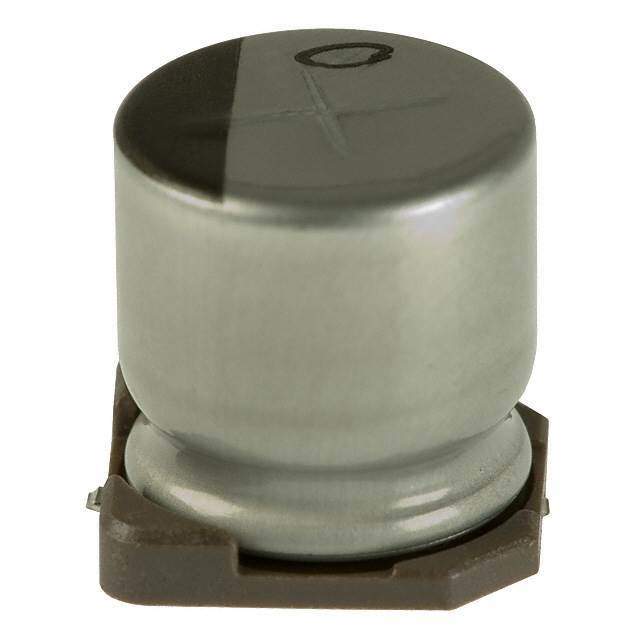

Same model may have multiple batches, images only for reference.

UWT1A102MNL1GS

Name: UWT1A102MNL1GS
Brand: Nichicon
SKU: 1383815
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UWT1A102MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 10V SMD / 1000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWT
Package	Tape & Reel
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	310 mA @ 120 Hz
Ripple Current @ High Frequency	465 mA @ 10 kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	500 pcs
Win Source Part Number	1383815-UWT1A102MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UWT1A102MNL1GS CAD Model

Description

The UWT1A102MNL1GS is an aluminum electrolytic capacitor from the UWT series. It has a capacitance of 1000μF and a rated voltage of 10V, making it suitable for general-purpose applications.

Capacitance: 1000μF
Rated Voltage: 10V
Tolerance: ±20%
Polarization: Polarized
Package / Case: Radial, Can - SMD
Height: 0.394" (10.00mm)
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Lifetime: 1000 Hours @ 105°C
