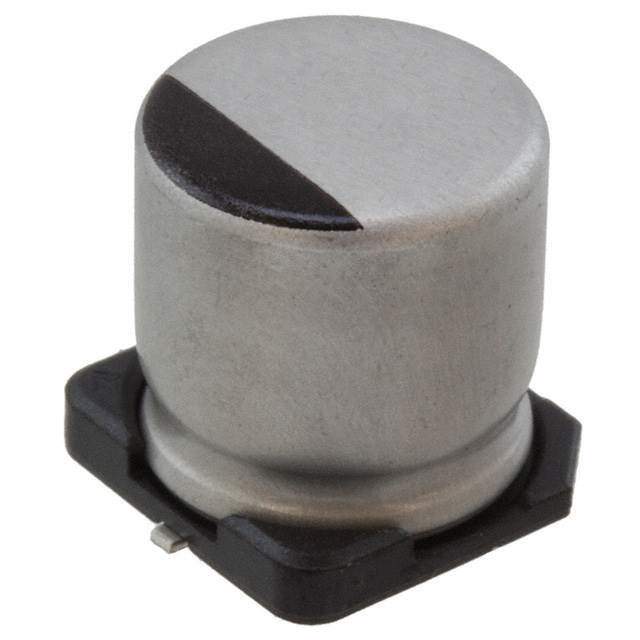

UWS1H101MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWS1H101MCL1GS

Part No UWS1H101MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWS
Package Tape & Reel
Product Status Obsolete
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Applications High Temperature Reflow
Ripple Current @ Low Frequency 195 mA @ 120 Hz
Ripple Current @ High Frequency 253.5 mA @ 10 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1350446-UWS1H101MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWS1H101MCL1GS CAD Model

Description

The UWS1H101MCL1GS is an aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 100μF
  • Voltage Rating: 50V
  • Package: Radial, Can - SMD
  • Size / Dimension: 0.394 inches Diameter
  • Mounting Type: Surface Mount
  • Surface Mount Land Size: 0.406 inches Length x 0.406 inches Width
  • Tolerance: ±20%
  • Lifetime: 2000 Hours @ 85°C
  • Ripple Current: 195mA @ 120Hz, 253.5mA @ 10kHz
  • Application: High-Temperature Reflow
