Same model may have multiple batches, images only for reference.

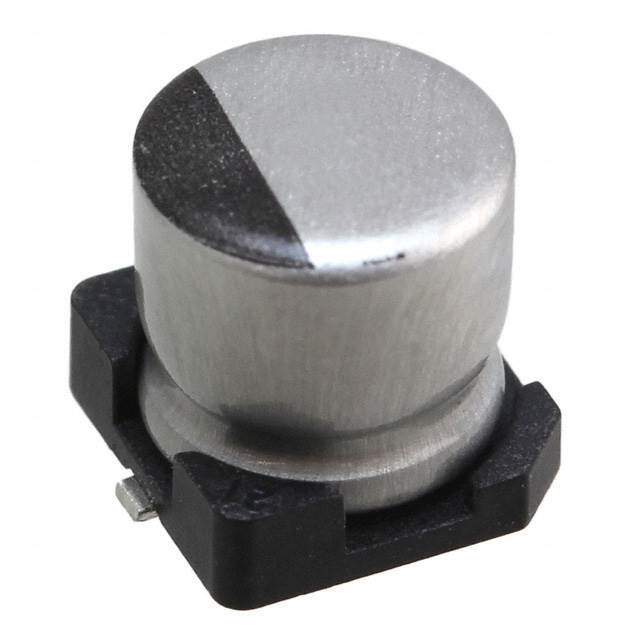

UWF1C220MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWF1C220MCL1GB

Part No UWF1C220MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 16V SMD / 22 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWF
Package Tape & Reel
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 40 mA @ 120 Hz
Ripple Current @ High Frequency 80 mA @ 100 kHz
Impedance 2.6 Ohms
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names UWF1C220MCL1GB-ND,493-9712-6,493-9712-1,493-9712-2
Standard Package 1,000
Win Source Part Number 999246-UWF1C220MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWF1C220MCL1GB CAD Model

Description

The Nichicon Aluminum Electrolytic Capacitor is a surface mountable capacitor with a capacitance of 22 µF and a voltage rating of 16V.

  • Capacitance: 22 µF
  • Voltage Rating: 16V
  • Application: General Purpose
  • Tolerance: ±20%
  • Height (Seated Max): 0.217" (5.50mm)
  • Dimension: 0.197" Dia (5.00mm)
  • Packaging: Radial, Can - SMD
  • Temperature Range: -55°C ~ 105°C
  • Product Status: Not for New Designs
  • Ripple Current: 40 mA @ 120 Hz
  • Ripple Current: 80 mA @ 100 kHz
