Same model may have multiple batches, images only for reference.

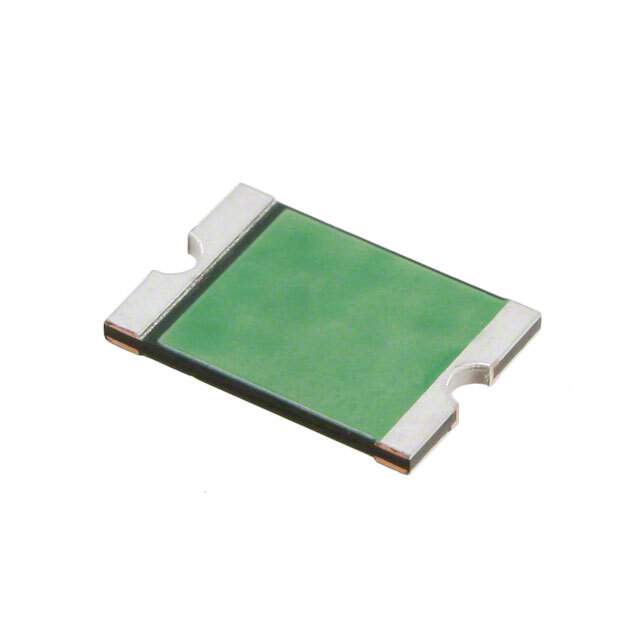

0ZCF0200AF2C Real Image
Same model may have multiple batches, images only for reference.

0ZCF0200AF2C

Part No 0ZCF0200AF2C
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 2A 2920  /  Polymeric PTC Resettable Fuse 24V 2 A Ih Surface Mount 2920 (7351 Metric), Concave
Datasheet
0ZCF0200AF2C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCF
Package Tape & Reel
Type Polymeric
Voltage - Max 24V
Current - Max 100 A
Current - Hold (Ih) (Max) 2 A
Current - Trip (It) 4 A
Time to Trip 5 s
Resistance - Initial (Ri) (Min) 35 mOhms
Resistance - Post Trip (R1) (Max) 120 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2920 (7351 Metric), Concave
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.032" (0.80mm)
Approval Agency AEC-Q200, cURus, TUV
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 507-1749-6,507-1749-2,507-1749-1
Standard Package 2,000
Win Source Part Number 985930-0ZCF0200AF2C
Ultra Librarian 3D Model Ultra Librarian 0ZCF0200AF2C CAD Model

Description

The Bel Fuse Inc. 985930-0ZCF0200AF2C is a PTC resettable fuse that is part of the 0ZCF series.

  • Maximum Voltage: 24V
  • Maximum Current: 100A
  • Packaging: tape and reel
  • Thickness: 0.032 inches
  • Win Source Part Number: 985930-0ZCF0200AF2C
