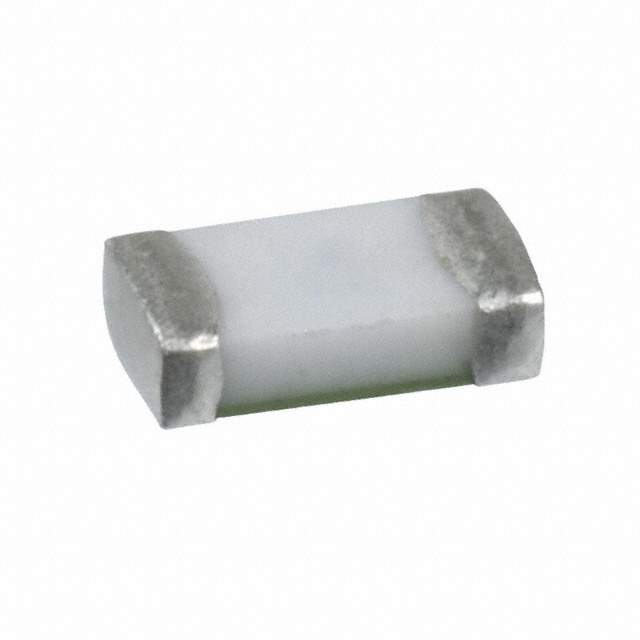

TR/3216FF500-R Real Image
Same model may have multiple batches, images only for reference.

TR/3216FF500-R

Part No TR/3216FF500-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 500MA 32VAC 63VDC
Datasheet
TR/3216FF500-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 500mA
Voltage Rating - AC 32V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.0019
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.98 Ohm
Win Source Part Number 048293-TR/3216FF500-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TR/3216FF500-R CAD Model

Description

The Eaton Bussmann Fuse is a board mount fuse that is designed to provide reliable protection for your electronic devices.

  • Current Rating: 500mA
  • Voltage Rating: 32V AC and 63V DC
  • Response Time: fast
  • Breaking Capacity @ Rated Voltage: 50A
  • Approvals: CSA and UL
  • Mounting: SMD (SMT) technology
  • Category: Circuit Protection
  • Popularity: medium
  • Supply and Demand: balance
  • Temperature Range: -55°C to 125°C
