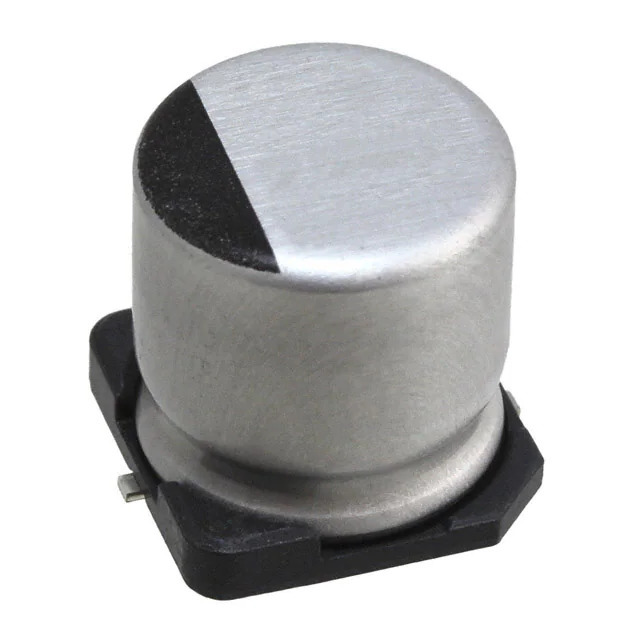

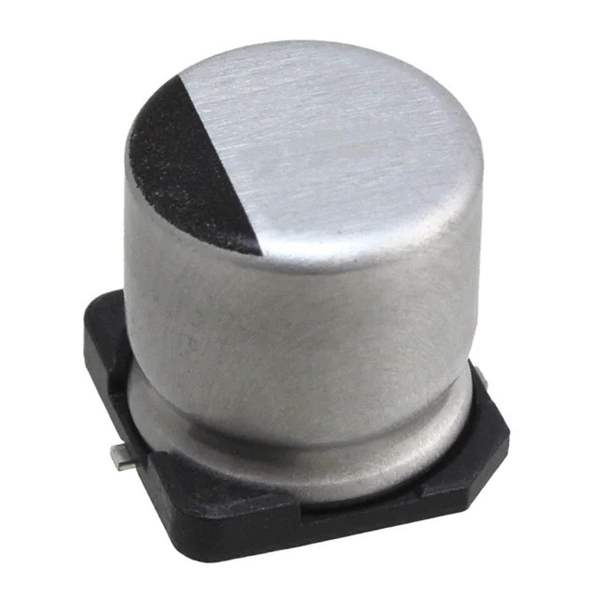

UWD1V221MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UWD1V221MCL1GS

Part No UWD1V221MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 35V SMD / 220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UWD1V221MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 335 mA @ 120 Hz
Ripple Current @ High Frequency 670 mA @ 100 kHz
Impedance 90 mOhms
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360298-UWD1V221MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1V221MCL1GS CAD Model

Description

The UWD1V221MCL1GS is a radial, surface mount aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 220μF
  • Voltage Rating: 35V
  • Application: General-Purpose
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 5000 Hours @ 105°C
  • Size: 0.394" (10.00mm) Diameter
  • Height: 0.394" (10.00mm)
  • ESR: Low
  • Ripple Current (Low Frequency): 335mA @ 120Hz
  • Ripple Current (High Frequency): 670mA @ 100kHz
  • Packaging: Tape and Reel
  • REACH: Compliant
  • ECCN: EAR99
  • Polarity: Polarized
  • Mounting: Surface Mount
