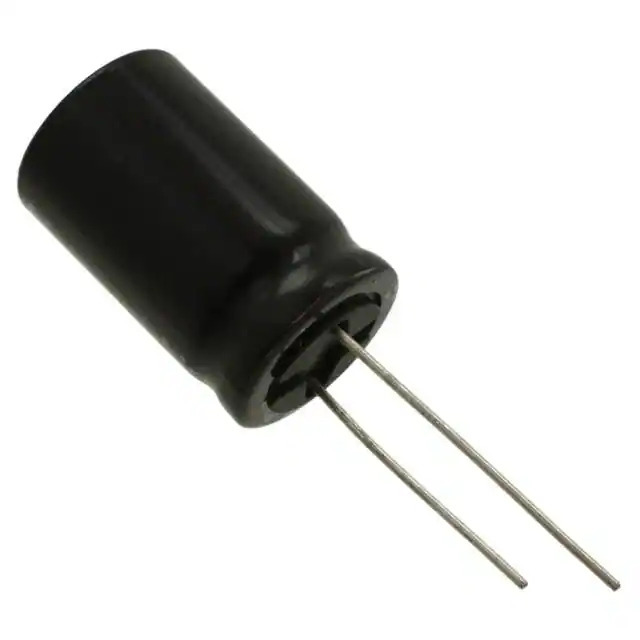

Same model may have multiple batches, images only for reference.
UVY1E472MHD Nichicon
Same model may have multiple batches, images only for reference.

UVY1E472MHD

Part No UVY1E472MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 4700UF 20% 25V RADIAL / 4700 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet
UVY1E472MHD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVY
Package Bulk
Product Status Not For New Designs
Capacitance 4700 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.57 A @ 120 Hz
Ripple Current @ High Frequency 1.8055 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number UVY1E
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357703-UVY1E472MHD
Ultra Librarian 3D Model Ultra Librarian UVY1E472MHD CAD Model

Description

The UVY1E472MHD is a radial, can-type aluminum electrolytic capacitor from Nichicon's UVY series.

  • Capacitance: 4700 µF
  • Voltage Rating: 25 V
  • Application: General Purpose
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 105°C
  • Ripple Current (Low Frequency): 1.57 A @ 120 Hz
  • Ripple Current (High Frequency): 1.8055 A @ 10 kHz
  • Lead Spacing: 0.295" (7.50mm)
  • Size/Dimension: 0.630" dia (16.00mm)
  • Mounting Type: Through Hole
  • Lifetime: 2000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
