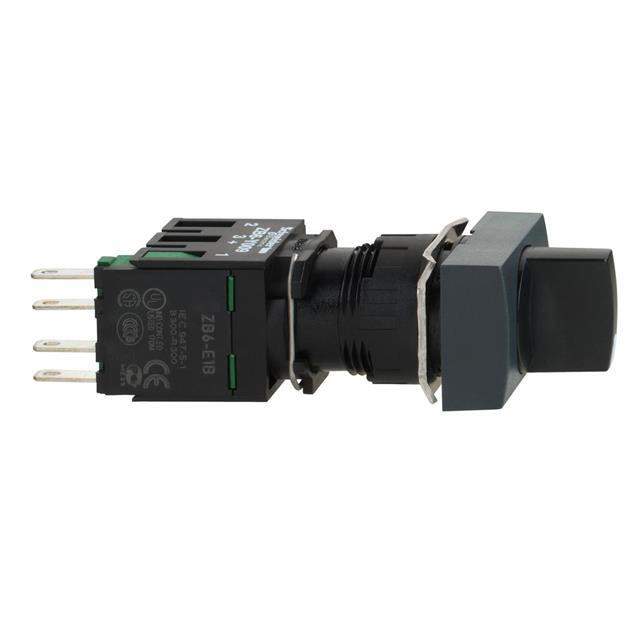

XB6DD233B Real Image
Same model may have multiple batches, images only for reference.

XB6DD233B

Part No XB6DD233B
Manufacturer Schneider Electric
Catalog Selector Switches
Description COMPLETE SELECTOR SWITCH, HARMON / Selector Switch 3 Position DPST-NO 3A (AC), 220mA (DC) 120 V Panel Mount
Datasheet
XB6DD233B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Selector Switches
Mfr Schneider Electric
Series Harmony XB6
Package Box
Type Standard
Circuit DPST-NO
Number of Positions 3
Switch Function Off-On
Current Rating (Amps) 3A (AC), 220mA (DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 125 V
Illumination Non-Illuminated
Mounting Type Panel Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions Circular - 16.00mm Dia
Ingress Protection IP65 - Dust Tight, Water Resistant
Temperature Range - Operating -25°C ~ 70°C
Mechanical Life 500,000 Cycles
Electrical Life 1,000,000 Cycles
Approval Agency CSA, UL
MSL Level 1 (Unlimited)
Other Names 4008-XB6DD233B
Standard Package 1
Win Source Part Number 981586-XB6DD233B
Ultra Librarian 3D Model Ultra Librarian XB6DD233B CAD Model

Description

The Harmony XB6 Selector Switch is a standard switch with a DPST-NO circuit and an Off-On switch function.

  • Circuit: DPST-NO
  • Switch Function: Off-On
  • Termination Style: Quick Connect 0.110 inches (2.8mm)
  • Mounting Type: Panel Mount
  • Voltage Rating: 120V AC, 125V DC
  • Ingress Protection: IP65
  • Mechanical Life: 500,000 cycles
  • Electrical Life: 1,000,000 cycles
  • Illumination: Non-Illuminated
  • Temperature Range: -25°C to 70°C
  • Panel Cutout: Circular, 16.00mm Diameter
  • Manufacturer: Schneider Electric
  • Approvals: CSA, UL
