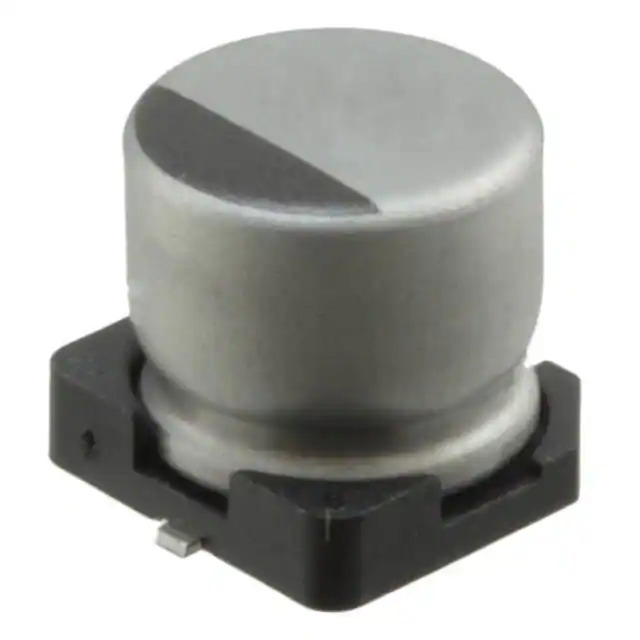

UUR1V470MCL6GS Nichicon
Same model may have multiple batches, images only for reference.

UUR1V470MCL6GS

Part No UUR1V470MCL6GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 35V SMD / 47 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet
UUR1V470MCL6GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUR
Package Tape & Reel
Product Status Last Time Buy
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization -
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 94 mA @ 120 Hz
Ripple Current @ High Frequency 156.98 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360288-UUR1V470MCL6GS
Ultra Librarian 3D Model Ultra Librarian UUR1V470MCL6GS CAD Model

Description

The 1360288-UUR1V470MCL6GS is an aluminum electrolytic capacitor manufactured by Nichicon. It belongs to the UUR series and has a capacitance of 47 μF with a tolerance of ±20%.

  • Series: UUR
  • Capacitance: 47 μF
  • Tolerance: ±20%
  • Voltage Rating: 35 V
  • Application: General Purpose
  • Ripple Current @ 120 Hz: 94 mA
  • Ripple Current @ 10 kHz: 156.98 mA
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Diameter: 0.248" (6.30mm)
  • Seated Height: 0.240" (6.10mm)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Lifetime: 2000 hours @ 85°C
  • Polarization: No
  • Lifecycle Status: Last Time Buy
  • REACH: Unaffected
