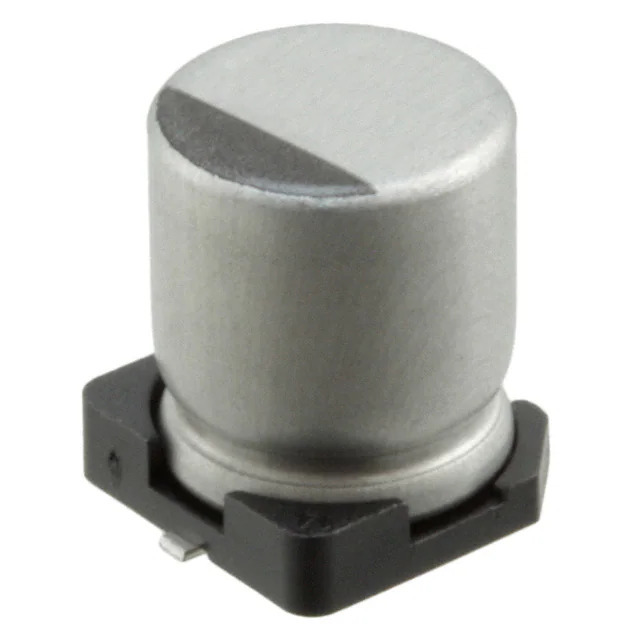

Same model may have multiple batches, images only for reference.
UUL1V330MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUL1V330MCL1GS

Part No UUL1V330MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 35V SMD / 33 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UUL1V330MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUL
Package Tape & Reel
Product Status Active
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 57 mA @ 120 Hz
Ripple Current @ High Frequency 85.5 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360230-UUL1V330MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUL1V330MCL1GS CAD Model

Description

The UUL series aluminum electrolytic capacitor from Nichicon is a reliable component suitable for general-purpose applications. This capacitor is from Nichicon.

  • Series: UUL
  • Capacitance: 33 μF
  • Voltage - Rated: 35 V
  • Tolerance: ±20%
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Max): 0.315" (8.00mm)
  • Ripple Current @ Low Frequency: 57 mA @ 120 Hz
  • Ripple Current @ High Frequency: 85.5 mA @ 10 kHz
  • Polarization: Polar
  • Status: Active
