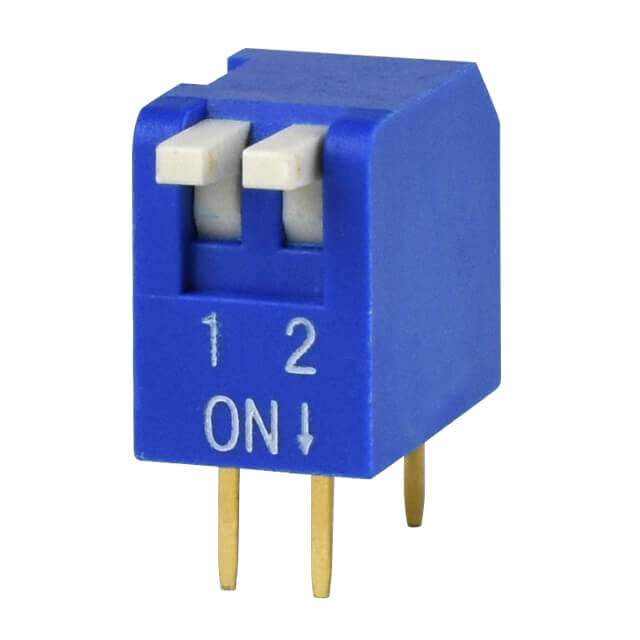

DS02-254-1L-02BE Real Image
Same model may have multiple batches, images only for reference.

DS02-254-1L-02BE

Part No DS02-254-1L-02BE
Manufacturer CUI Inc.
Catalog DIP Switches
Description DIP SWITCH, SPST, 2.54 PITCH, RA / Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
Datasheet
DS02-254-1L-02BE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr CUI Devices
Series DS02-254
Package Tube
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.378" (9.60mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.262" (6.65mm)
Electrical Life 2,000 Cycles
Base Product Number DS02-254
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2223-DS02-254-1L-02BE
Standard Package 70
Win Source Part Number 969394-DS02-254-1L-02BE
Ultra Librarian 3D Model Ultra Librarian DS02-254-1L-02BE CAD Model

Description

The DS02-254-1L-02BE is a DIP switch from CUI Devices.

  • Positions: Two
  • Pitch: 0.100 inches
  • Circuit: SPST
  • Actuator Type: Piano
  • Contact Finish: Gold
  • Contact Material: Copper alloy
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Electrical Life: 2,000 cycles
  • Washable: Yes
  • Mounting Type: Through-Hole and Right-Angle
  • Packaging: Tube
  • ECCN: EAR99
  • REACH: Unaffected
  • Standard Package: 70
