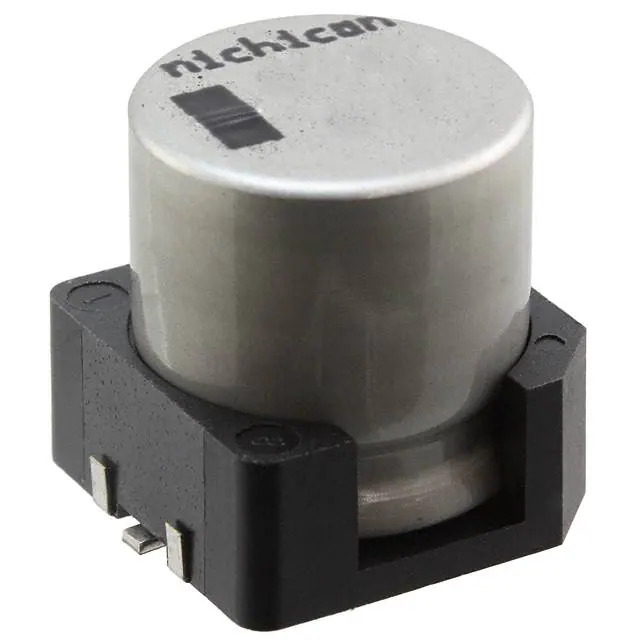

UUE1E331MNS1MS Nichicon
Same model may have multiple batches, images only for reference.

UUE1E331MNS1MS

Part No UUE1E331MNS1MS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 25V SMD / 330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 125°C
Datasheet
UUE1E331MNS1MS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUE
Package Tape & Reel
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Polarization Polar
Ratings -
Applications Automotive
Ripple Current @ Low Frequency 502.5 mA @ 120 Hz
Ripple Current @ High Frequency 750 mA @ 100 kHz
Lead Spacing -
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Surface Mount Land Size 0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360358-UUE1E331MNS1MS
Ultra Librarian 3D Model Ultra Librarian UUE1E331MNS1MS CAD Model

Description

The 1360358-UUE1E331MNS1MS is an aluminum electrolytic capacitor manufactured by Nichicon.

  • Series: UUE
  • Application: Automotive
  • Capacitance: 330 µF
  • Voltage - Rated: 25 V
  • Tolerance: ±20%
  • Operating Temperature: -55°C ~ 125°C
  • Package / Case: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.492" Dia (12.50mm)
  • Height - Seated (Max): 0.571" (14.50mm)
  • Surface Mount Land Size: 0.535" L x 0.535" W (13.60mm x 13.60mm)
  • Ripple Current - Low Frequency: 502.5 mA @ 120 Hz
  • Ripple Current - High Frequency: 750 mA @ 100 kHz
  • Lifetime @ Temp.: 5000 Hrs @ 125°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
