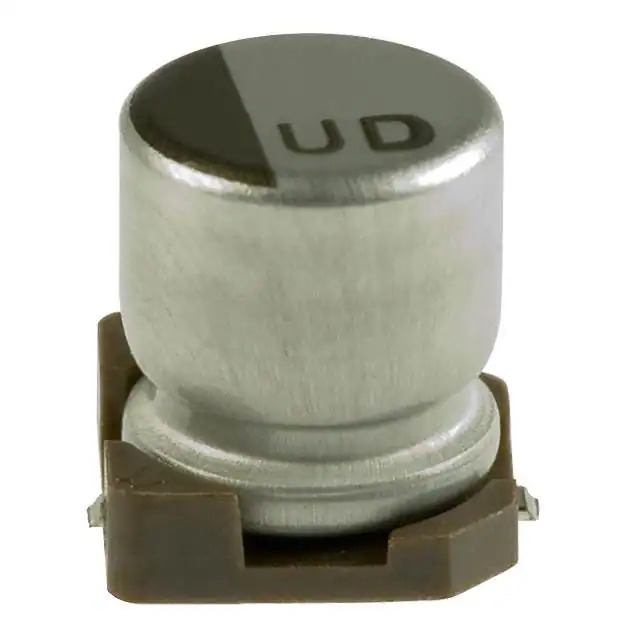

Same model may have multiple batches, images only for reference.

UUD1E220MCL1GS

Name: UUD1E220MCL1GS
Brand: Nichicon
SKU: 1360368
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UUD1E220MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 25V SMD / 22 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UUD1E220MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUD
Package	Tape & Reel
Product Status	Active
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	75 mA @ 120 Hz
Ripple Current @ High Frequency	150 mA @ 100 kHz
Impedance	760 mOhms
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360368-UUD1E220MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UUD1E220MCL1GS CAD Model

Description

The UUD1E220MCL1GS is a high-quality aluminum electrolytic capacitor manufactured by Nichicon.

Series: UUD
Capacitance: 22 μF
Voltage Rating: 25 V
Application: Automotive
AEC-Q200 Ratings: Yes
Temperature Range: -55°C to 105°C
Package: Radial, Can - SMD
Mounting: Surface Mount
Lifetime: 2000 hours @ 105°C
ESR: 760 mOhms
Ripple Current (Low Frequency): 75 mA @ 120 Hz
Ripple Current (High Frequency): 150 mA @ 100 kHz
Status: Active
