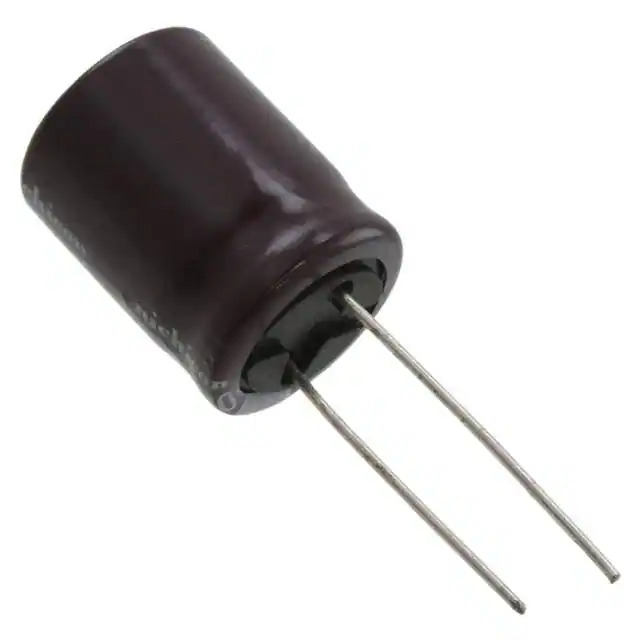

Same model may have multiple batches, images only for reference.

UPM1V102MHD6

Name: UPM1V102MHD6
Brand: Nichicon
SKU: 1357696
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPM1V102MHD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 35V RADIAL / 1000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPM1V102MHD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.53 A @ 120 Hz
Ripple Current @ High Frequency	1.77 A @ 10 kHz
Impedance	34 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357696-UPM1V102MHD6
Ultra Librarian 3D Model	Ultra Librarian UPM1V102MHD6 CAD Model

Description

The Nichicon UPM1V102MHD6 is a 1000μF aluminum electrolytic capacitor with a voltage rating of 35V.

Capacitance: 1000μF
Voltage Rating: 35V
Temperature Range: -55°C to 105°C
Capacitance Tolerance: ±20%
Type: Radial, Can
Mounting Type: Through-Hole
Height: 22.00mm
Diameter: 16.00mm
Ripple Current: 1.53A @ 120Hz, 1.77A @ 10kHz
Lifetime: 5000 hours @ 105°C
