ON Semiconductor FAN5702UMP30X: A High-Performance Charge Pump LED Driver

The FAN5702UMP30X is a highly efficient, compact charge pump LED driver designed by ON Semiconductor to provide a versatile solution for portable devices requiring backlighting or LED power. This innovative component is engineered to drive up to four LEDs with a constant current, ensuring uniform brightness and enhancing the overall user experience of the device it powers.

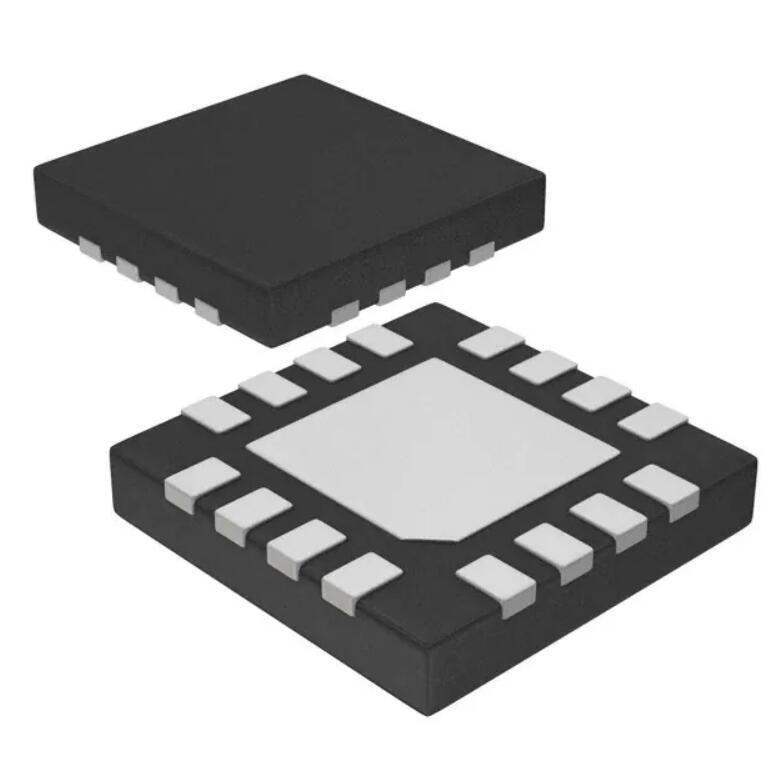

With a 2.7V to 5.5V input voltage range, the FAN5702UMP30X is perfect for battery-operated gadgets such as smartphones, tablets, and handheld gaming devices. Its small form factor, housed in a micro-lead frame package, allows for seamless integration into space-constrained designs without sacrificing performance or efficiency.

The device operates using a 1x/1.5x fractional charge pump, which ensures high efficiency across a wide range of input voltages. This means that the FAN5702UMP30X can maintain a consistent output even when the battery voltage varies, making it an ideal choice for applications where battery life is critical.

ON Semiconductor has equipped the FAN5702UMP30X with a range of features to optimize performance and protect the connected LEDs. These include soft-start to prevent inrush current at startup, over-voltage protection, and thermal shutdown. Additionally, the driver supports pulse-width modulation (PWM) dimming, which offers designers the flexibility to adjust the brightness levels according to user preferences or power-saving requirements.

Installation and operation are straightforward, thanks to the minimal external component requirement, which reduces complexity and time-to-market for product developers. The FAN5702UMP30X is not just a testament to ON Semiconductor's commitment to innovation but also to their dedication to delivering power-efficient and high-quality solutions for the ever-evolving electronics market.

In summary, the FAN5702UMP30X from ON Semiconductor is a top-tier LED driver that combines efficiency, versatility, and reliability, making it the go-to choice for designers looking to enhance the visual performance of their portable devices.
