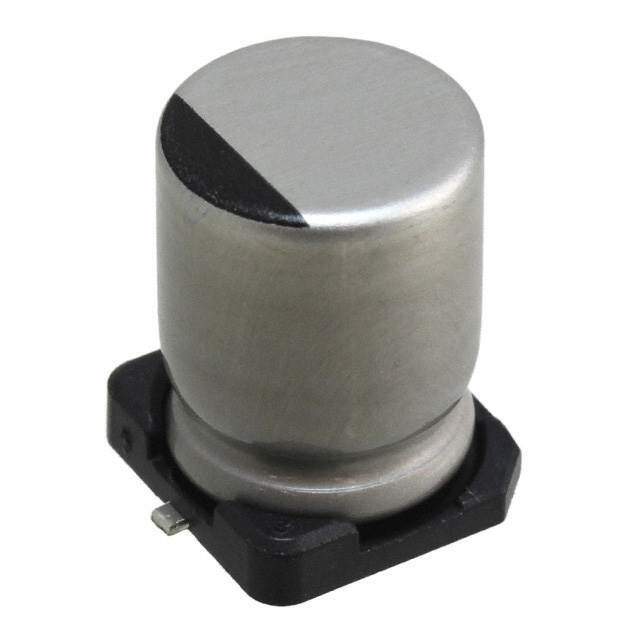

Same model may have multiple batches, images only for reference.

UCX1V101MCL1GS

Name: UCX1V101MCL1GS
Brand: Nichicon
SKU: 1349436
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UCX1V101MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 35V SMD / 100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 200mOhm 2000 Hrs @ 135°C
Datasheet	UCX1V101MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCX
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	200mOhm
Lifetime @ Temp.	2000 Hrs @ 135°C
Temperature Range - Operating	-40°C ~ 135°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	135 mA @ 120 Hz
Ripple Current @ High Frequency	270 mA @ 100 kHz
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1349436-UCX1V101MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCX1V101MCL1GS CAD Model

Description

This aluminum electrolytic capacitor from Nichicon is ideal for general purpose applications.

Manufacturer: Nichicon
Capacitance: 100µF
Voltage Rating: 35V
Series: UCX
Tolerance: ±20%
Equivalent Series Resistance (ESR): 200mOhm
Polarization: Polarized
Surface Mount Land Size: 0.327” L x 0.327” W (8.30mm x 8.30mm)
Package/Case: Radial, Can - SMD
Size/Dimension: 0.315” Dia (8.00mm)
Height: 0.413” (10.50mm)
Operating Temperature: -40°C to 135°C
Lifetime: 2000 hours @ 135°C
