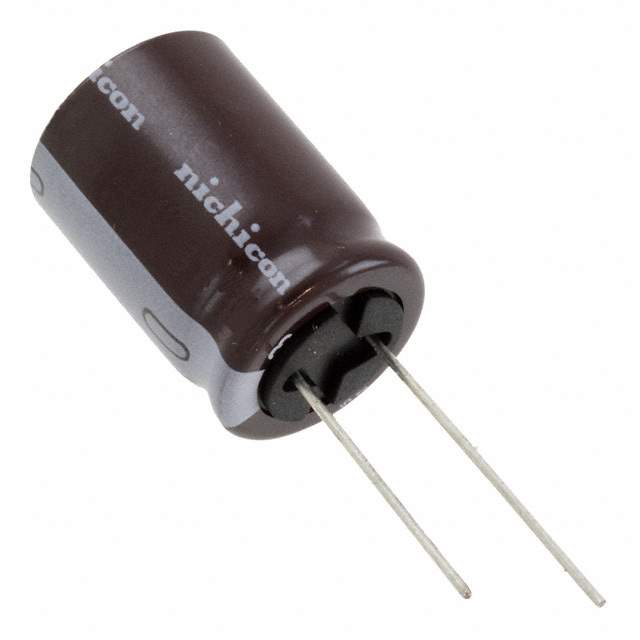

UCS2V101MHD

Name: UCS2V101MHD
Brand: Nichicon
SKU: 1003015
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCS2V101MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 350V RADIAL / 100 µF 350 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCS
Package	Bulk
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	350 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	787.5 mA @ 120 Hz
Ripple Current @ High Frequency	1.575 A @ 100 kHz
Lead Spacing	0.295" (7.50mm)
Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-14942,UCS2V101MHD-ND
Standard Package	300
Win Source Part Number	1003015-UCS2V101MHD
Ultra Librarian 3D Model	Ultra Librarian UCS2V101MHD CAD Model

Description

This electronic component is an aluminum electrolytic capacitor from Nichicon.

Manufacturer: Nichicon
Win Source Part Number: 1003015-UCS2V101MHD
Category: Capacitors
Package: Bulk
Standard Package: 300
Capacitance: 100 μF
Tolerance: ±20%
Voltage Rating: 350 V
