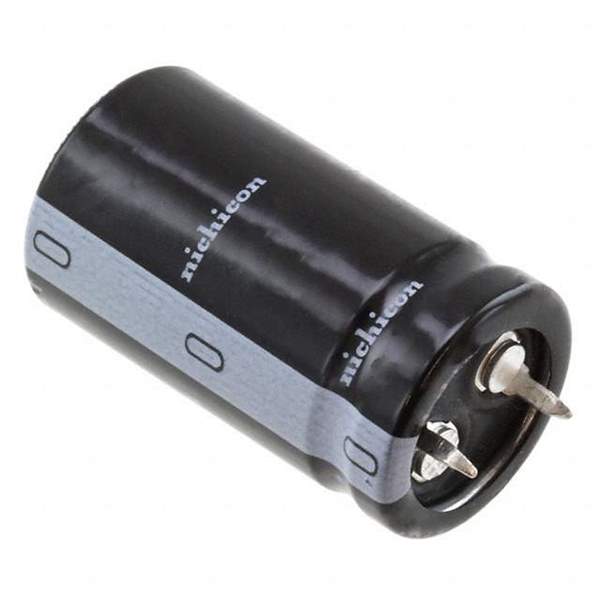

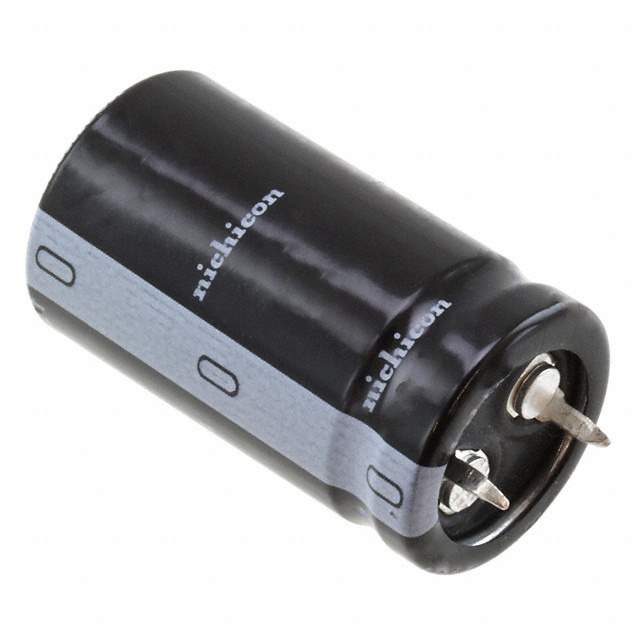

Same model may have multiple batches, images only for reference.

LLS2D471MELY

Name: LLS2D471MELY
Brand: Nichicon
SKU: 778619
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LLS2D471MELY
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 200V SNAP / Cap Aluminum Lytic 470uF 200V 20% (20 X 35mm) Snap-In 10mm 2030mA 3000h 85°C Bulk
Datasheet	LLS2D471MELY Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	LLS
Packaging	Bulk
Capacitance	470μF
Tolerance	±20%
Voltage Rating DC	200V
Lifetime @ Temp.	3000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	2.03A @ 120Hz
Ripple Current - High Frequency	3.045A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Dimension	0.787" Dia (20.00mm)
Height - Seated (Maximum)	1.378" (35.00mm)
Mounting Style	Through Hole
Package	Radial, Can - Snap-In
Win Source Part Number	778619-LLS2D471MELY
Popularity	Medium
Supply and Demand Status	Limited
Family Name	LS
Introduction Date	September 12, 2003
ECCN	EAR99
Country of Origin	China, Japan Malaysia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian LLS2D471MELY CAD Model

Description

The Nichicon LLS series capacitor is a radial, can-snap-in type capacitor from Nichicon.

Capacitance: 470μF
Voltage Rating: 200V DC
Tolerance: ±20%
ESR (Equivalent Series Resistance): -
Lifetime: 3000 hours @ 85°C
Operating Temperature Range: -40°C to 85°C
Family Name: LS
Lead Spacing: 0.394" (10.00mm)
Ripple Current: 2.03A @ 120Hz, 3.045A @ 50kHz
Diameter: 0.787" (20.00mm)
Seated Height: 1.378" (35.00mm)
Packaging: Bulk
Market Popularity: Medium
