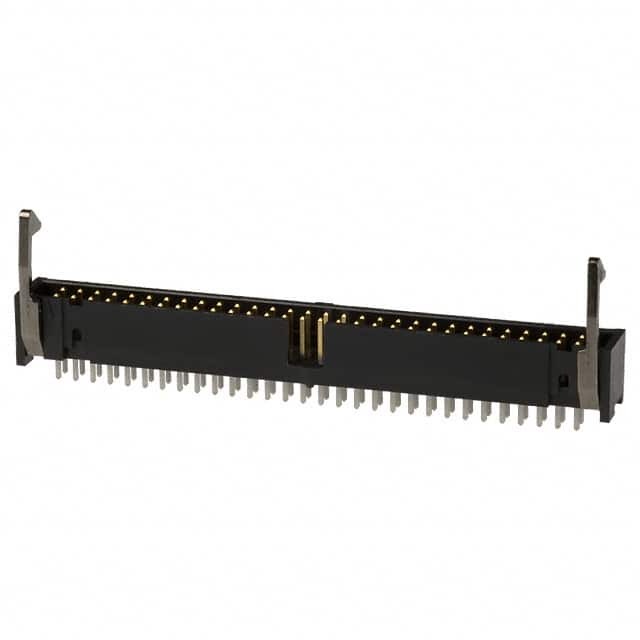

1-1761608-6
Same model may have multiple batches, images only for reference.

1-1761608-6

Part No 1-1761608-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 60POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMP-Latch
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 60
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.237" (6.02mm)
Contact Length - Post 0.102" (2.60mm)
Insulation Height 0.404" (10.26mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 250VAC
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 1761608
Standard Package 6 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853766-1-1761608-6
Ultra Librarian 3D Model Ultra Librarian 1-1761608-6 CAD Model

Description

The AMP-Latch series connector is a rectangular header with male pins, designed for use in electronic applications. TE Connectivity is the manufacturer.

  • Series: AMP-Latch
  • Connector Type: Header, Male Pins
  • Keying Slot: Yes
  • Number of Positions: 60
  • Loaded: Yes, Male Pins Both Rows
  • Termination: Solder
  • Fastening: Latch Lock/Eject Hooks
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 250VAC
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Insulation Color: Black
  • Shrouded: 4 Walls
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold or Gold-Palladium
  • Operating Temperature: -65°C to 105°C
  • Standard Package: 6 pieces
