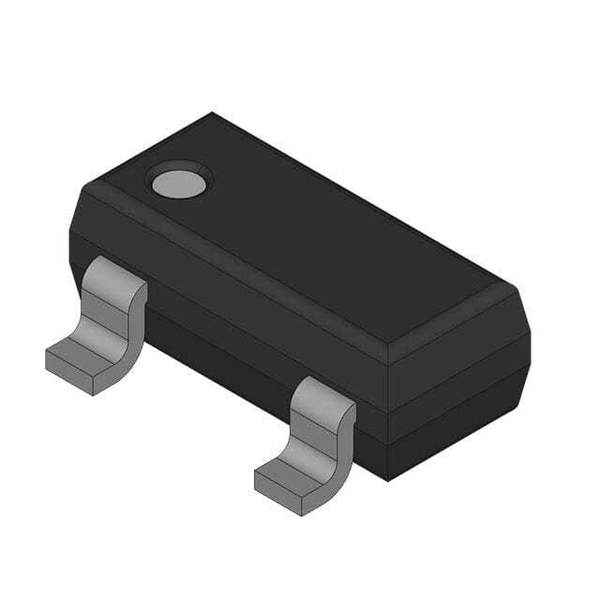

MMBZ20VCL,215

Name: MMBZ20VCL,215
Brand: Nexperia USA Inc.
SKU: 1138800
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MMBZ20VCL,215
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 17VWM 28VC TO236AB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	2
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	17V (Max)
Voltage - Breakdown (Min)	19V
Voltage - Clamping (Max) @ Ipp	28V
Current - Peak Pulse (10/1000µs)	1.4A
Power - Peak Pulse	40W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	65pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TA)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	TO-236AB
Base Product Number	MMBZ20
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1138800-MMBZ20VCL,215
Ultra Librarian 3D Model	Ultra Librarian MMBZ20VCL,215 CAD Model

Alternative Products

Description

The 1138800-MMBZ20VCL,215 is a TVS diode designed for circuit protection in automotive applications.

Type: TVS Diode, Unidirectional
Reverse Standoff Voltage: 17V
Breakdown Voltage: 19V
Clamping Voltage: 28V @ Peak Pulse Current
Peak Pulse Power: 40W
Capacitance: 65pF @ 1MHz
Mount: Surface Mount
Package: TO-236-3
Operating Temperature: -55°C to 150°C
