Same model may have multiple batches, images only for reference.

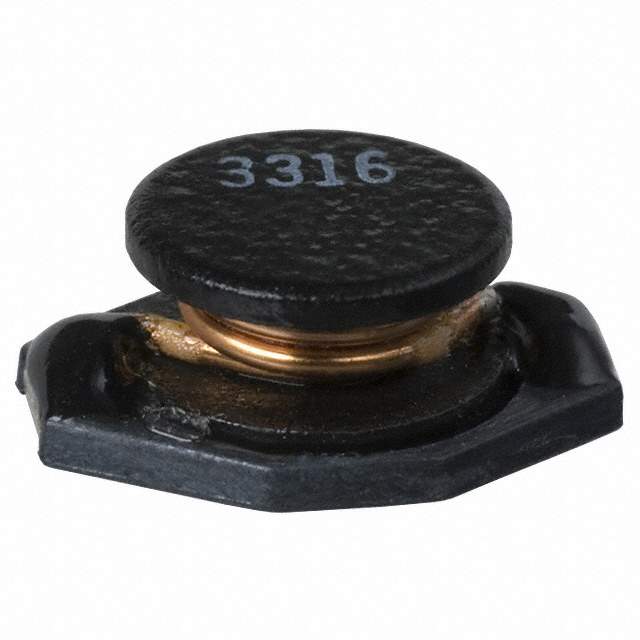

PM3316-4R7M-RC Real Image
Same model may have multiple batches, images only for reference.

PM3316-4R7M-RC

Part No PM3316-4R7M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 4.5A 19 MOHM SMD / 4.7 µH Unshielded Drum Core, Wirewound Inductor 4.5 A 19mOhm Nonstandard
Datasheet
PM3316-4R7M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 5.4A
Shielding Unshielded
DC Resistance (DCR) 19mOhm
Q @ Freq 50 @ 4MHz
Frequency - Self Resonant 42MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number PM3316
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number M8561TR,-M8561CT,-PM3316-4R7M-RCTR-ND,-M8561CTINACTIVE,M8561CT,-M8561TRINACTIVE,-PM3316-4R7M-RCCT,-PM3316-4R7M-RCCT-ND,-M8561TR,-PM3316-4R7M-RCTR
Standard Package 500
Win Source Part Number 1328031-PM3316-4R7M-RC
Ultra Librarian 3D Model Ultra Librarian PM3316-4R7M-RC CAD Model

Description

Bourns Inc. presents the PM3316-4R7M-RC, a fixed inductor that is perfect for surface mount applications.

  • Type: drum core, wirewound
  • Shielding: unshielded
  • Size: 0.500 inches by 0.394 inches
  • Height: 0.209 inches
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Material core: ferrite
  • DC Resistance: 19mOhm
  • Package: nonstandard
  • Temperature Range: -55°C to 125°C
  • ROHS3 compliant: Yes
  • Standard Package: 500
