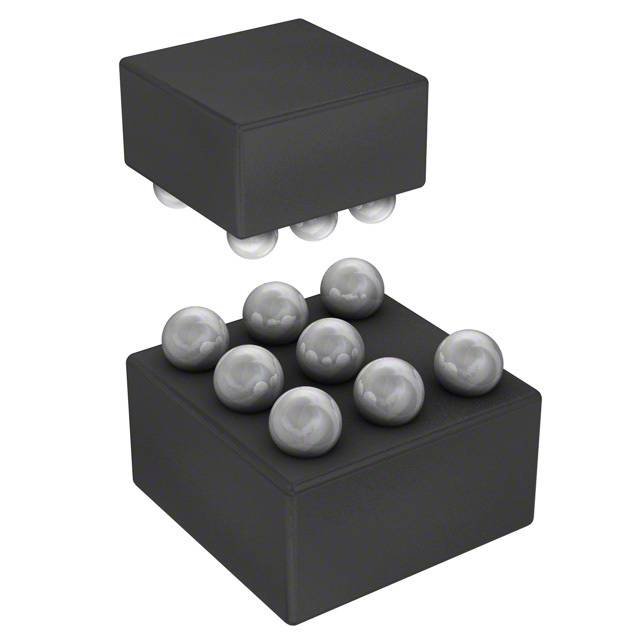

Same model may have multiple batches, images only for reference.
IP4310CX8/P,135 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4310CX8/P,135

Part No IP4310CX8/P,135
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 8WLCSP
Datasheet
IP4310CX8/P,135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6V
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 12pF @ 1MHz
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 8-CSP (1.16x1.16)
Win Source Part Number 1045687-IP4310CX8/P,135
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IP4310CX8/P,135 CAD Model

Description

The IP4310CX8/P,135 is a zener diode with a stand-off voltage of 5.5V (Max) and a minimum breakdown voltage of 6V.

  • Stand-off Voltage (Max): 5.5V
  • Minimum Breakdown Voltage: 6V
  • Capacitance: 12pF @ 1MHz
  • Application: HDMI
  • Channel: Unidirectional
  • Protection: Power line
  • Package: 8-CSP (1.16x1.16)
  • Operating Temperature Range: -30°C to 85°C (TA)
  • Category: Circuit Protection
  • Popularity: Medium
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Sufficient
