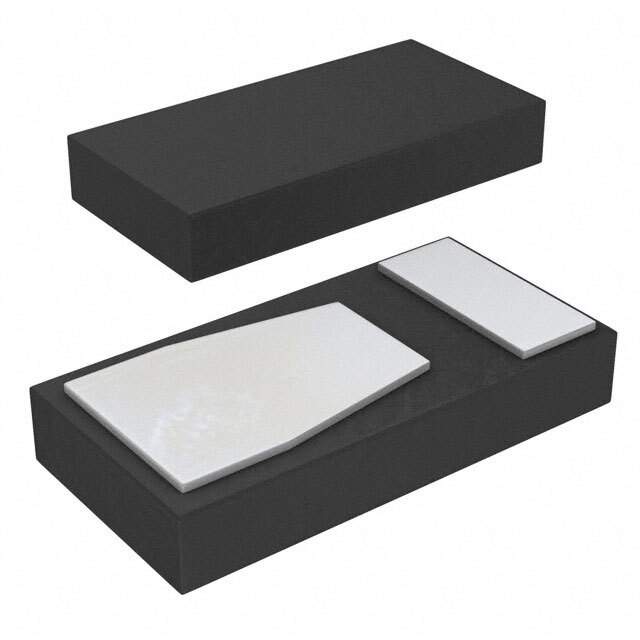

PTVS5V0Z1USKYL

Name: PTVS5V0Z1USKYL
Brand: Nexperia USA Inc.
SKU: 994521
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTVS5V0Z1USKYL
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 12VC DSN1608-2 / 12V Clamp 20A Ipp Tvs Diode Surface Mount DSN1608-2
Datasheet	PTVS5V0Z1USKYL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Nexperia USA Inc.
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6.4V
Voltage - Clamping (Max) @ Ipp	12V
Current - Peak Pulse (10/1000µs)	20A
Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	1200pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	0603 (1608 Metric)
Supplier Device Package	DSN1608-2
Base Product Number	PTVS5V0
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	568-13309-2-ND,568-13309-1-ND,NEXNEXPTVS5V0Z1USKYL,568-13309-2,1727-2742-6,568-13309-1,2156-PTVS5V0Z1USKYL-NEX,568-13309-6-ND,1727-2742-2,PTVS5V0Z1USK,568-13309-6,1727-2742-1
Standard Package	10,000
Win Source Part Number	994521-PTVS5V0Z1USKYL
Ultra Librarian 3D Model	Ultra Librarian PTVS5V0Z1USKYL CAD Model

Alternative Products

Description

The 994521-PTVS5V0Z1USKYL is a unidirectional Zener TVS diode designed for general-purpose applications.

Reverse Standoff Voltage: 5V
Breakdown Voltage: 6.4V
Peak Pulse Power: 200W
Maximum Clamping Voltage: 12V @ 20A peak pulse current
Capacitance: 1200pF @ 1MHz frequency
Packaging: Tape and reel
Standard Package: 10,000
Mounting: SMD (SMT)
Package Size: 0603 (1608 Metric)
Operating Temperature: -40°C to 125°C (TA)
ECCN: EAR99
REACH: Unaffected
MSL Level: 1 (Unlimited)
HTSUS: 8541.10.0080
Supplier: Nexperia USA Inc.
