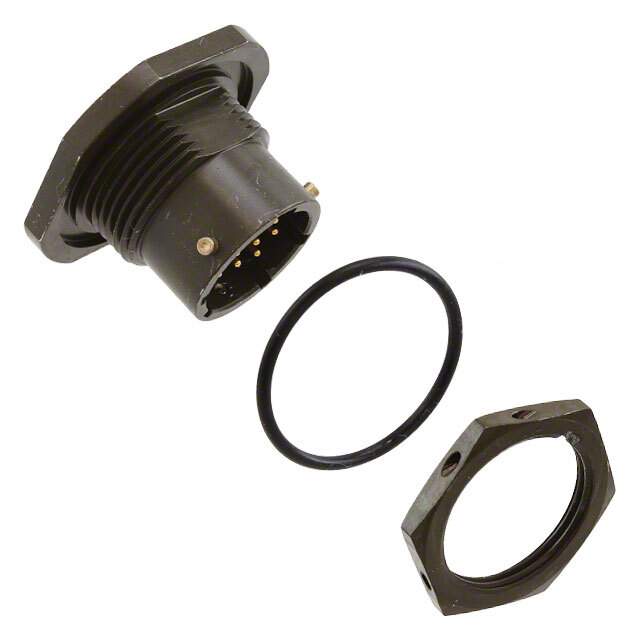

PT07A-12-10P Real Image
Same model may have multiple batches, images only for reference.

PT07A-12-10P

Part No PT07A-12-10P
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 10P GOLD SLDR CUP / 10 Position Circular Connector Receptacle, Male Pins Solder Cup
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Amphenol Industrial Operations
Series MIL-DTL-26482 Series I, PT
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 10
Shell Size - Insert 12-10
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Olive Drab Chromate over Cadmium
Contact Finish - Mating Gold
Color Olive Drab
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Contact Material Copper Alloy
Insert Material Neoprene
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Base Product Number PT07A
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
California Prop 65 Warning Information
Win Source Part Number 1349206-PT07A-12-10P
Ultra Librarian 3D Model Ultra Librarian PT07A-12-10P CAD Model

Description

The Amphenol Industrial Operations MIL-DTL-26482 series I, PT series circular connector assembly is designed for use in various applications such as aerospace, industrial, instrumentation, mass transit, and military. Amphenol Industrial Operations manufactures it.

  • Number of Positions: 10
  • Connector Type: Receptacle with Male Pins
  • Shell Size: 12-10
  • Locking Type: Bayonet Lock
  • Mounting Type: Panel Mount
  • Operating Temperature: -55°C to 125°C
  • Shell Material: Aluminum with Olive Drab Chromate over Cadmium Finish
  • Insert Material: Neoprene
  • RoHS Compliance: Non-Compliant
