The 74LVT245BQ,115 is an octal transceiver with 3-state outputs manufactured by Nexperia. This device is part of the Low Voltage Technology (LVT) family, designed for high-speed, low-voltage data transmission. It features eight bidirectional channels and is commonly used for interfacing memory, buffering data buses, and isolating sections of a system to improve performance and reduce noise. The 3-state outputs allow for multiple devices to share a common bus without contention.

Applications:

• Memory Interfacing: Facilitating communication between memory and processor.
• Data Bus Buffering: Amplifying and isolating data signals on a bus.
• Bidirectional Data Transfer: Enabling data flow in both directions between two systems.
• Bus Isolation: Disconnecting sections of a bus for testing or reconfiguration.
• Peripheral Interfacing: Connecting peripherals to a central processing unit.

Features:

• Octal Transceiver: Provides eight bidirectional channels for data transfer.
• 3-State Outputs: Allows outputs to be disabled for bus sharing and isolation.
• Low Voltage Operation: Operates at 3.3V, suitable for low-power systems.
• High-Speed Performance: Minimizes propagation delay for fast data transfer.
• Direction Control Input (DIR): Determines the direction of data flow.

Benefits:

• Efficient Data Transfer: Enables fast and reliable data communication.
• Flexible Bus Management: 3-state outputs simplify bus sharing and isolation.
• Improved Signal Integrity: Buffers signals to reduce noise and distortion.
• Versatile Operation: Can be used in a variety of bidirectional data transfer applications.
• Reduced System Noise: Low noise characteristics minimize interference.

Additional Details:

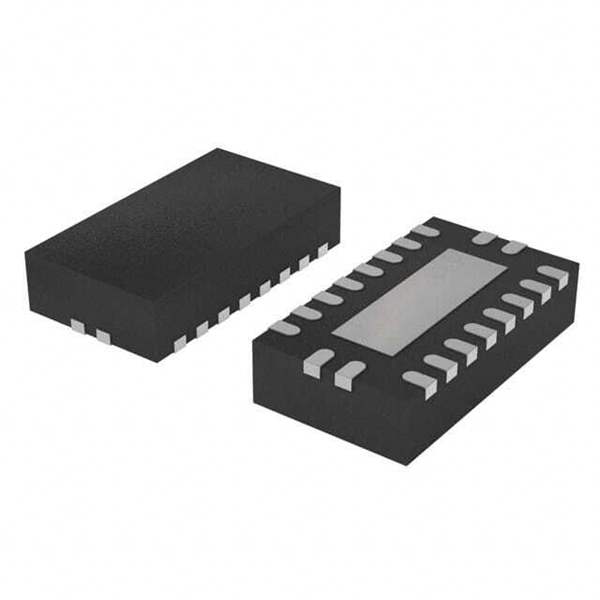

The 74LVT245BQ,115 is available in a DHVQFN package, making it suitable for high-density surface mount assembly. It is Pb-free and RoHS compliant, adhering to environmental regulations. The direction control input (DIR) determines the direction of data flow. When DIR is high, data flows from A to B; when DIR is low, data flows from B to A. The output enable input (OE) controls the output state. When OE is low, the outputs are enabled; when OE is high, the outputs are in a high-impedance state. This device offers a combination of high speed, low voltage, and bidirectional capability, making it ideal for a wide range of data communication applications.
