Same model may have multiple batches, images only for reference.

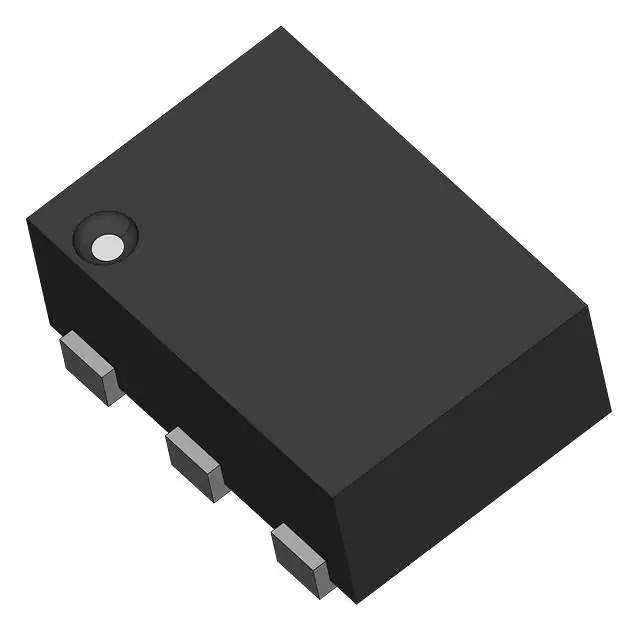

74LVC1G06GF Real Image
Same model may have multiple batches, images only for reference.

74LVC1G06GF

Part No 74LVC1G06GF
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description FUNC, 1 INPUT, CMOS, PDSO6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74LVC
Package Bulk
Product Status Active
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Features Open Drain
Voltage - Supply 1.65V ~ 5.5V
Current - Quiescent (Max) 200 µA
Current - Output High, Low -, 32mA
Input Logic Level - Low 0.58V ~ 1.65V
Input Logic Level - High 1.07V ~ 3.85V
Max Propagation Delay @ V, Max CL 4ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 6-XSON, SOT891 (1x1)
Package / Case 6-XFDFN
Base Product Number 74LVC1G06
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Win Source Part Number 550069-74LVC1G06GF
Ultra Librarian 3D Model Ultra Librarian 74LVC1G06GF CAD Model

Description

The 74LVC1G06GF is a single inverter logic gate from Nexperia USA Inc.

  • Part of the: 74LVC series of integrated circuits (ICs) and features an open drain
  • Current output high: 32mA
  • Maximum propagation delay: 4ns @ 5V and 50pF
  • Quiescent current: 200μA
  • Voltage supply range: 1.65V to 5.5V
  • Temperature range: -40°C to 125°C
  • Surface mountable: and comes in a 6-XFDFN package
  • With its open drain feature and reliable performance, this logic gate is: suitable for applications that require low power consumption and high-speed switching
