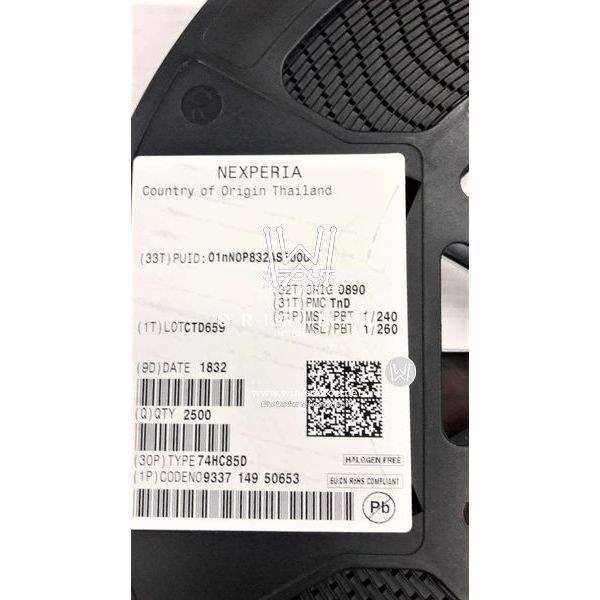

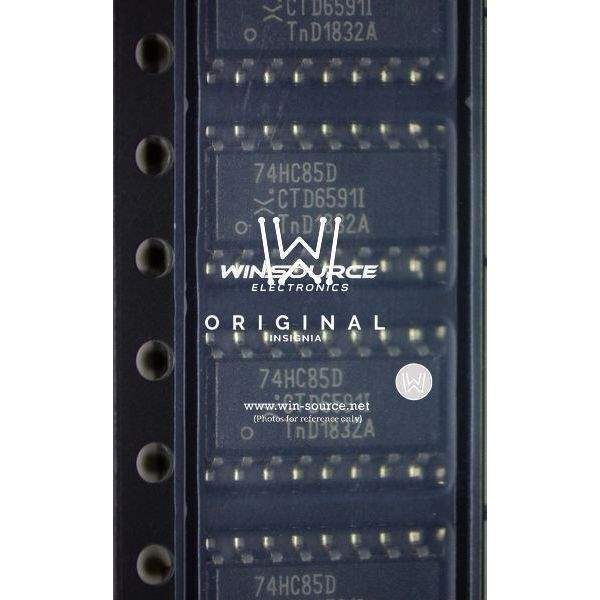

74HC85D,653 Nexperia USA Inc. 74HC85D,653 real image 74HC85D,653 label picture
Same model may have multiple batches, images only for reference.
74HC85D,653 Nexperia USA Inc. 74HC85D,653 real image 74HC85D,653 label picture
74HC85D,653 Nexperia USA Inc. 74HC85D,653 real image 74HC85D,653 label picture
Same model may have multiple batches, images only for reference.

74HC85D,653

Part No 74HC85D,653
Manufacturer Nexperia USA Inc.
Catalog Logic - Comparators
Description IC COMPARATOR MAGNITUDE 16SOIC
Datasheet
74HC85D,653 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Magnitude Comparator
Number of Bits 4
Output Active High
Output Function A<B, A=B, A>B
Supply Voltage - Operating 2 V to 6 V
Current - Output High, Low 5.2mA, 5.2mA
Max Propagation Delay @ V, Max CL 33ns @ 6V, 50pF
Current - Quiescent 8μA
Temperature Range - Operating -40°C to 125°C
Mounting Surface Mount
Win Source Part Number 1008554-74HC85D,653
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Communications & Networking, Industrial
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian 74HC85D,653 CAD Model

Description

The Nexperia USA Inc. Magnitude Comparator is a high-quality integrated circuit designed for use in various electronic applications. With a surface mount mounting style and an active high output, this comparator has a current output of 5.2mA for both high and low outputs. The maximum propagation delay at V, Max CL is 33ns @ 6V, 50pF, and the current quiescent is 8μA. The comparator has four bits and an output function of AB. It can operate in a temperature range of -40°C to 125°C and a supply voltage of 2 V to 6 V. It is a popular choice among users and has a medium popularity rating.
