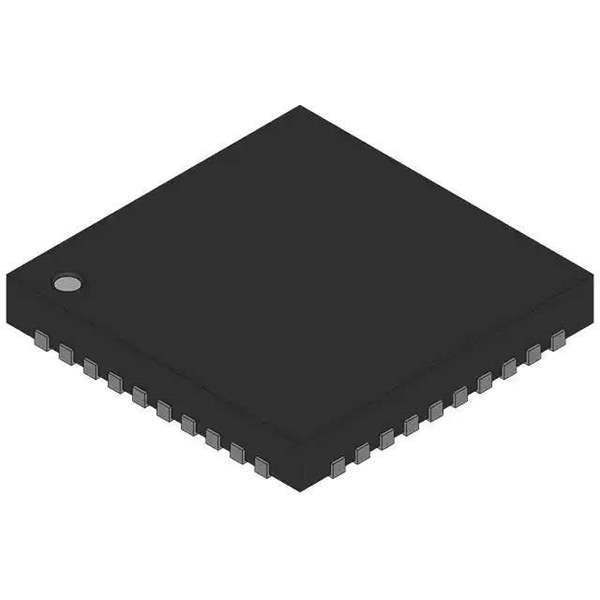

DS10BR254TSQ Real Image
Same model may have multiple batches, images only for reference.

DS10BR254TSQ

Part No DS10BR254TSQ
Manufacturer National Semiconductor (TI)
Catalog Interface - Signal Buffers, Repeaters, Splitters
Description LINE RECEIVER, 1 FUNC, 2 DRIVER,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Signal Buffers, Repeaters, Splitters
Mfr National Semiconductor (TI)
Series DS10BR254
Package Bulk
Product Status Active
Type Buffer, Multiplexer
Applications LVDS
Input CML, LVDS, LVPECL
Output LVDS
Data Rate (Max) 1.5Gbps
Delay Time 440ps
Capacitance - Input 1.7 pF
Voltage - Supply 3V ~ 3.6V
Current - Supply 113mA
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 40-WFQFN Exposed Pad
Supplier Device Package 40-WQFN (6x6)
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 585989-DS10BR254TSQ
Ultra Librarian 3D Model Ultra Librarian DS10BR254TSQ CAD Model

Description

The DS10BR254TSQ is a buffer and multiplexer integrated circuit (IC) designed for LVDS applications from National Semiconductor (TI).

  • Supply Voltage: 3V to 3.6V
  • Current Consumption: 113mA
  • Maximum Data Rate: 1.5Gbps
  • Delay Time: 440ps
  • Input Compatibility: CML, LVDS, and LVPECL
  • Output: LVDS
  • Package: 40-WFQFN exposed pad
  • Mounting Type: Surface Mount
  • Input Capacitance: 1.7pF
  • Temperature Range: -40°C to 85°C (TA)
  • ECCN: EAR99
  • MSL Level: 3 (168 Hours)
  • Category: Integrated Circuits
  • Status: Active
