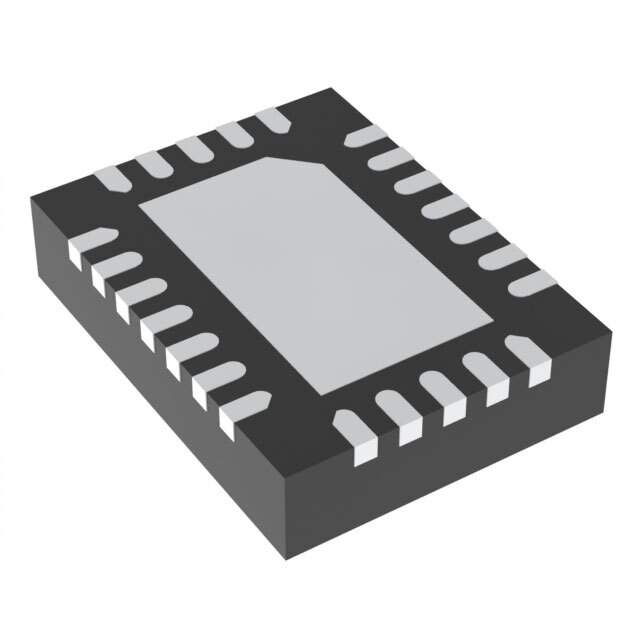

MP6543HGL-Z

Part No MP6543HGL-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Motor Drivers, Controllers
Description 22V, 2A, THREE-PHASE POWER STAGE / Multiphase Motor Driver NMOS PWM 24-QFN (3x4)
Datasheet
MP6543HGL-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Monolithic Power Systems Inc.
Package Tape & Reel
Motor Type - Stepper Multiphase
Motor Type - AC, DC Brushless DC (BLDC)
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (3)
Interface PWM
Technology NMOS
Applications Brushless DC (BLDC)
Current - Output 2A
Voltage - Supply 3V ~ 22V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 24-VFQFN Exposed Pad
Supplier Device Package 24-QFN (3x4)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1589-MP6543HGL-ZDKR,1589-MP6543HGL-ZCT,1589-MP6543HGL-ZTR
Standard Package 5,000
Win Source Part Number 969532-MP6543HGL-Z
Ultra Librarian 3D Model Ultra Librarian MP6543HGL-Z CAD Model

Description

The MP6543HGL-Z is a fully integrated driver and control power stage for brushless DC (BLDC) motors.

  • Designed for use in: applications such as multiphase stepper motors and AC/DC brushless motors
  • Technology: NMOS
  • Current Output: up to 2A
  • Output Configuration: half bridge (3)
  • Interface: PWM
  • Voltage Load: not specified
  • Supply Voltage Range: 3V to 22V
  • Package: 24-VFQFN exposed pad
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • EAR99 Compliant: yes
  • REACH Unaffected: yes
  • Ideal for use in: applications that require a driver that is fully integrated and has a control and power stage
