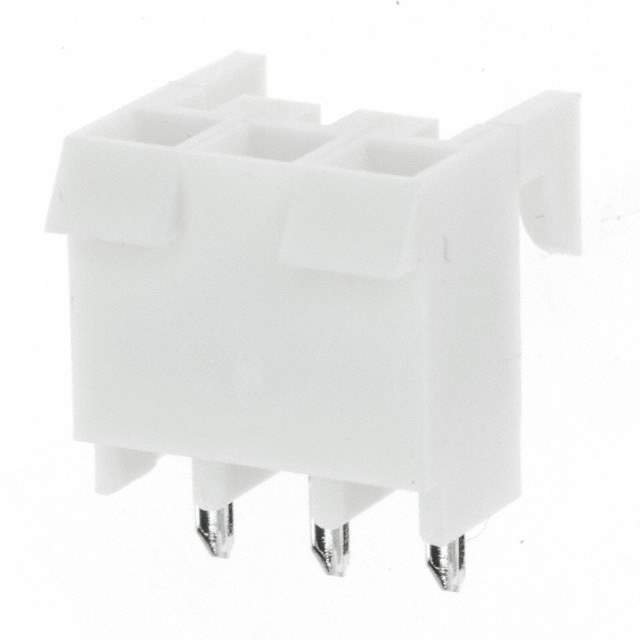

9484038 Real Image
Same model may have multiple batches, images only for reference.

9484038

Part No 9484038
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Molex
Series KK396, 41815
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 3
Number of Positions Loaded All
Pitch - Mating 0.156" (3.96mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Insulation Color Natural
Insulation Height 0.449" (11.40mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Hooks
Current Rating (Amps) 5A
Voltage Rating 600V
Applications Automotive, General Purpose, Medical, Telecommunications
Insulation Material Polyester
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 60.0µin (1.52µm)
Base Product Number 000948
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1314967-9484038
Ultra Librarian 3D Model Ultra Librarian 9484038 CAD Model

Description

The Molex KK396, 41815 series 1314967-9484038 is a 3 position, 1 row, board to board or cable, receptacle rectangular connector with female socket contacts.

  • Positions: 3
  • Rows: 1
  • Type: Board to Board/Cable Receptacle
  • Contact Gender: Female Socket
  • Pitch: 0.156" (3.96mm)
  • Voltage Rating: 600V
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • RoHS Compliant: Yes
  • Supply and Demand Status: Limited
  • Current Rating: 5A
  • Temperature Range: -40°C ~ 105°C
