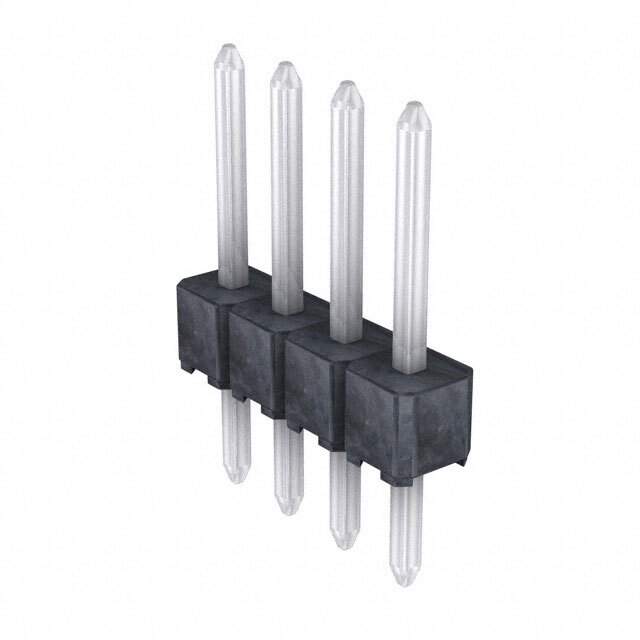

0901200124

Get a Quote

Part No	0901200124
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	0.478" (12.15mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	118.1µin (3.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyester, Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Applications	Automotive, General Purpose
Base Product Number	90120
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	090120-0124-E,90120-0124,901200124-E,090120-0124,0901200124-E,WM8074,901200124,90120-0124-E
Standard Package	1
Win Source Part Number	1332493-0901200124
Ultra Librarian 3D Model	Ultra Librarian 0901200124 CAD Model

Description

The Molex 1332493-0901200124 is a 4-position header connector with breakaway feature and male pin contact type.

Contact Material: brass
Plating Finish: tin
Pitch: 0.100” (2.54mm)
Contact Finish Thickness: 118.1µin (3.00µm)
Mounting: through hole
Fastening Type: push-pull
Temperature Range: -55°C to 125°C
Applications: automotive and general purpose
Material Flammability: UL94 V-0
Insulation Material: polyester, glass filled
Shrouding: unshrouded
Overall Contact Length: 0.478” (12.15mm)
