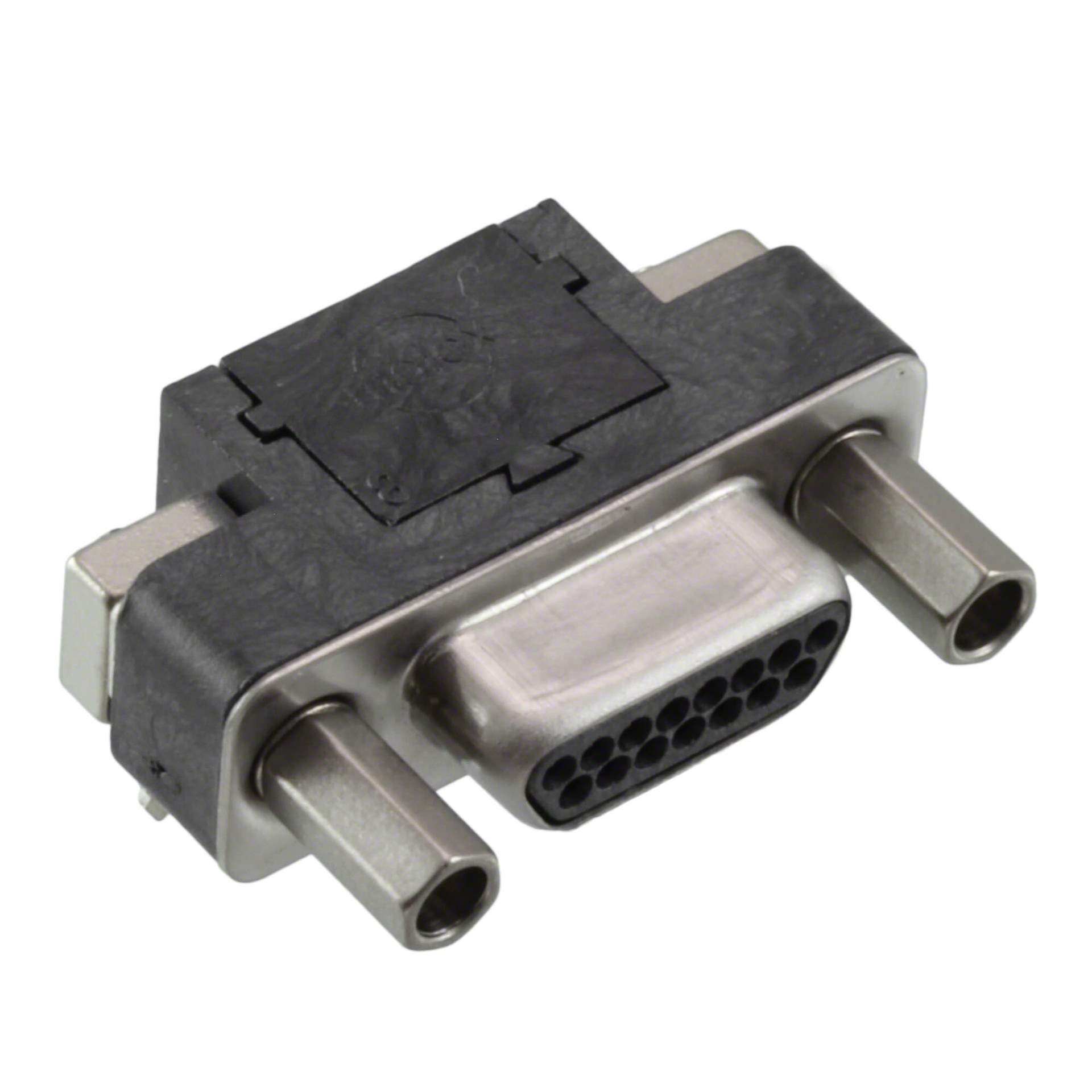

836129020 Real Image
Same model may have multiple batches, images only for reference.

836129020

Part No 836129020
Manufacturer Molex, LLC
Catalog D - SUB, D - SHAPED connectors
Description CONN MICRO-D PLUG 15POS R/A SLDR
Datasheet
836129020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Commercial Micro-D Series 83612
Packaging Tube
Connector Style D-Type, Micro-D
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.050 Row to Row
Contact Type Signal
Mounting Panel Mount, Through Hole, Right Angle
Flange Feature Mating Side, Female Screwlock (2-56)
Termination Solder
Features Board Lock, Shielded
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 15μin (0.38μm)
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 125°C
Current Rating 1A
Housing Material Liquid Crystal Polymer (LCP)
Contact Material Copper Alloy
Backset Spacing 0.267" (6.78mm)
Win Source Part Number 766311-836129020
Popularity Medium
Supply and Demand Status Limited
Family Name 83612
Introduction Date May 20, 2010
ECCN EAR99
Country of Origin China, China, Republic of Korea, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 836129020 CAD Model

Description

The Molex 836129020 is a 15-position commercial micro-D connector plug with male pins.

  • Series: 83612
  • Contacts: Signal
  • Current Rating: 1A
  • Operating Temperature Range: -55°C to 125°C
  • Contact Finish: Gold
  • Contact Finish Thickness: 15μin (0.38μm)
  • Contact Material: Copper Alloy
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Mounting: Through-Hole, Panel Mount, Right Angle
  • Shell Size: 0.050 Pitch x 0.050 Row to Row
  • Backset Spacing: 0.267" (6.78mm)
  • Features: Board Lock, Shielded, Flange (Mating Side, Female Screwlock (2-56))
  • Win Source Part Number: 766311-836129020
