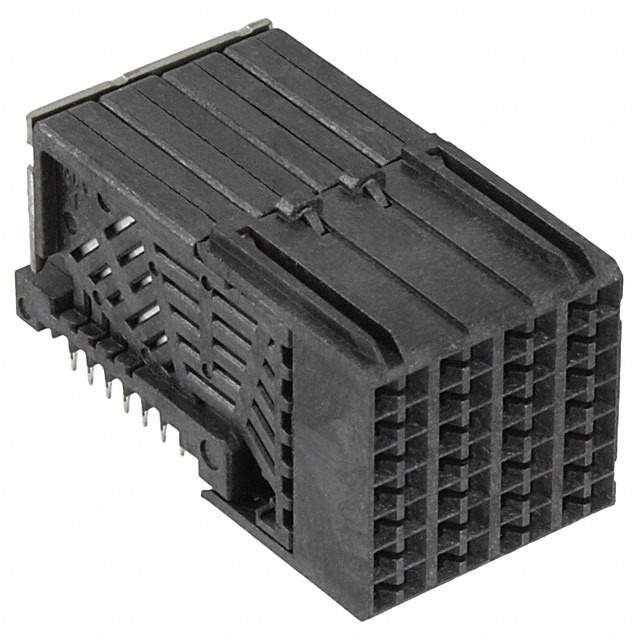

76020-1004

Name: 76020-1004
Brand: Molex, LLC
SKU: 766140
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	76020-1004
Manufacturer	Molex, LLC
Catalog	Backplane Connectors
Description	CONN RCPT MOD 56POS 7ROW R/A
Datasheet	76020-1004 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex Connector Corporation
Series	GbX I-Trac 76020
Packaging	Tray
Connector Usage	Coplanar, Daughtercard
Connector Type	Receptacle, Female Sockets
Connector Style	I-Trac
Number of Positions	56
Number of Positions Loaded	All
Number of Rows	7
Number of Columns	4
Mounting	Board Edge, Through Hole, Right Angle
Termination	Press-Fit
Contact Finish	Gold
Contact Finish Thickness	30μin (0.76μm)
Color	Black
Material Flammability Rating	UL94 V-0
Operating Temperature Range	-55°C ~ 80°C
Voltage Rating	120V
Win Source Part Number	766140-76020-1004
Popularity	Medium
Supply and Demand Status	Limited
Family Name	76020
Introduction Date	July 27, 2010
ECCN	EAR99
Country of Origin	Mexico, Mexico, Mexico, United States of America
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 76020-1004 CAD Model

Description

The 766140-76020-1004 is a connector manufactured by Molex Connector Corporation.

Series: GbX I-Trac 76020
Package: Tray
Positions: 56
Usage: Coplanar and Daughtercard
Color: Black
Temperature Range: -55°C to 80°C
Connector Type: Receptacle
Sockets: Female
Termination: Press-fit
Contact Finish: Gold, 30μin (0.76μm)
Voltage Rating: 120V
Flammability Rating: UL94 V-0
Connector Usage: Board Edge, Through Hole, Right Angle
Win Source Part Number: 766140
