84688-101LF Amphenol
Same model may have multiple batches, images only for reference.

84688-101LF

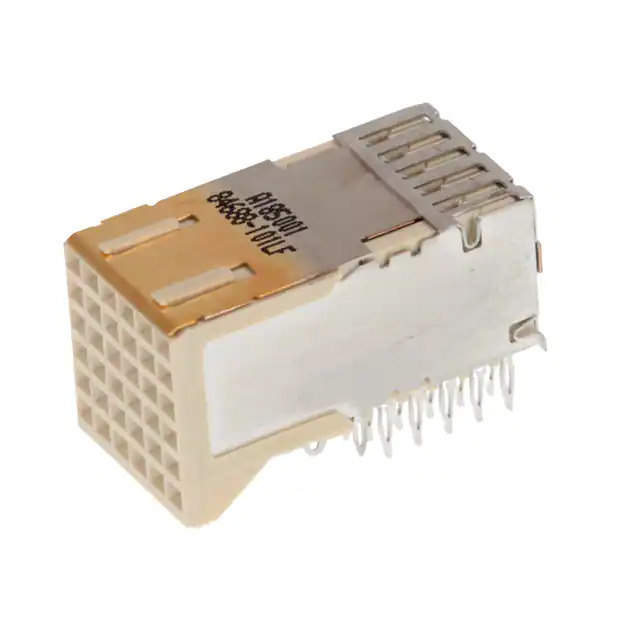

Part No 84688-101LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN RCPT HIGH SPEED 36P EDGE MT / 36 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural High Speed
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Amphenol ICC (FCI)
Series Metral® 1000
Package Tube
Product Status Active
Connector Usage -
Connector Type Receptacle, Female Sockets
Connector Style High Speed
Number of Positions 36
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Number of Columns -
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 30 Signal, 6 Ground
Features Board Guide, Shielded, Spacer
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Natural
Current Rating (Amps) 1A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 105°C
Voltage Rating -
Base Product Number 84688
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364524-84688-101LF
Ultra Librarian 3D Model Ultra Librarian 84688-101LF CAD Model

Description

The 84688-101LF is a specialized backplane connector from the Metral® 1000 series by Amphenol ICC (FCI). Amphenol ICC (FCI)'s 84688-101LF...

  • Series: Metral® 1000
  • Connector Type: Receptacle
  • Positions: 36
  • Number of Rows: 5
  • Mounting Type: Board Edge, Through Hole, Right Angle
  • Features: Board Guide, Shielded, Spacer
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Operating Temperature: -55°C to 105°C
  • Product Status: Active
