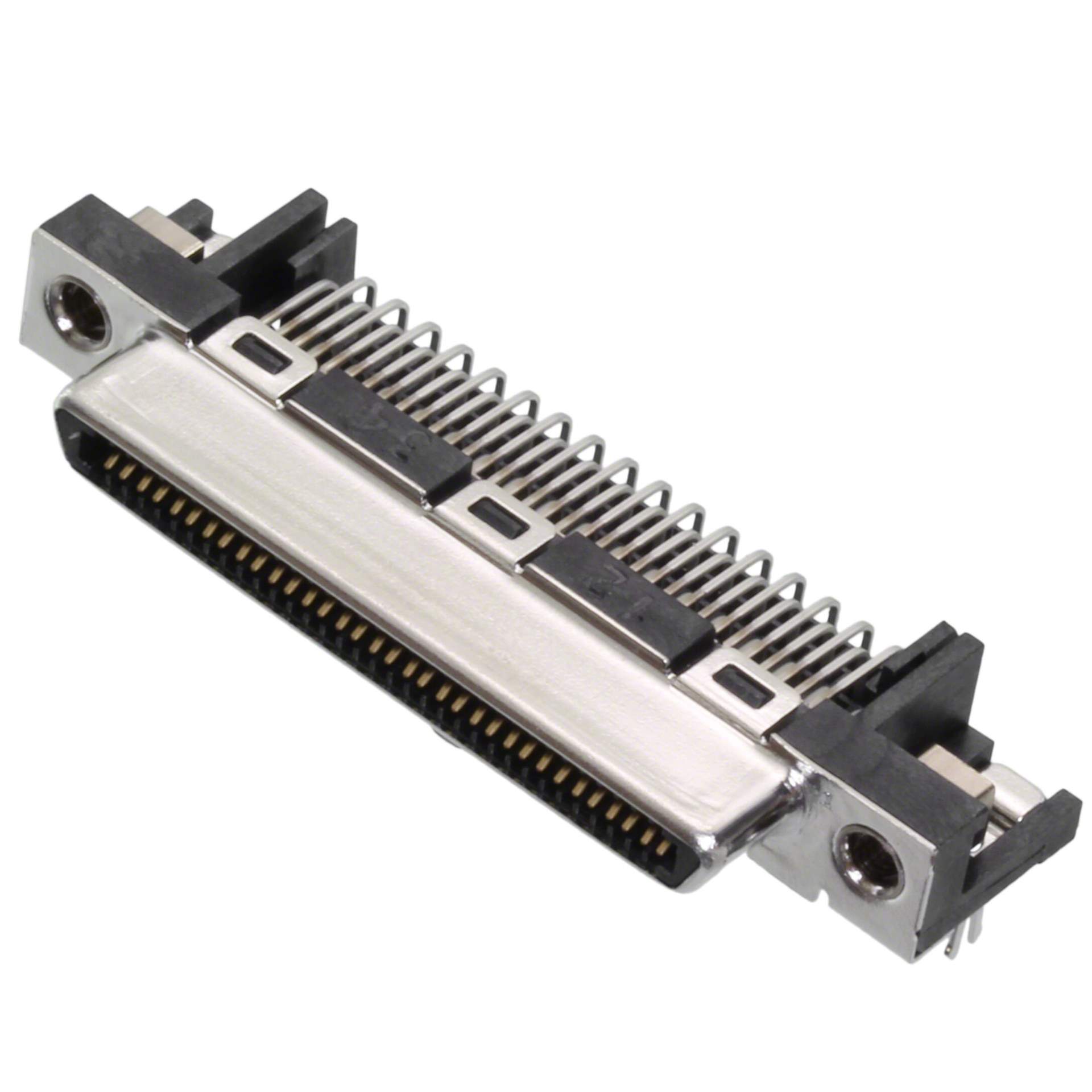

71430-0101 Real Image
Same model may have multiple batches, images only for reference.

71430-0101

Part No 71430-0101
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 0.80mm Pitch Ultra+ VHDCI Receptacle, Right-Angle, with or without Enhanced Shield, 68 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle
Contact Material Brass
Contact Plating Gold
Country of Origin US
Current Rating 500 mA
Depth 14.65 mm
Features Shielded
Flammability Rating UL94 V-0
Gender Receptacle
Housing Material Thermoplastic
Insulation Resistance 500 MΩ
Lead Pitch 800 µm
Length 42.7 mm
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 30 V
Max Voltage Rating (DC) 3.03 kV
Min Operating Temperature -55 °C
Mount Through Hole
Number of Circuits 68
Number of Contacts 68
Number of Ports 1
Number of Positions 68
Number of Rows 2
Number of Terminals 68
Orientation Right Angle
Pitch 1.6 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating (AC) 30 V
Win Source Part Number 1176349-71430-0101
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 71430-0101 CAD Model

Description

The Molex LLC 1176349-71430-0101 is a 2-row, 68-position black colored shielded receptacle connector.

  • Pitch: 1.6 mm
  • Termination: Solder
  • Current Rating: 500 mA
  • Voltage Rating: 30 V
  • Housing Material: Thermoplastic
  • Contact Plating: Gold
  • Orientation: Right Angle
  • Contact Gender: Female
  • Length: 42.7 mm
  • Depth: 14.65 mm
  • Mounting: Through Hole
  • RoHS Compliant: Yes
  • Supply and Demand Status: Limited
  • Popularity: Medium
  • Alternative Part Numbers: 0714300101, 71430.0101
