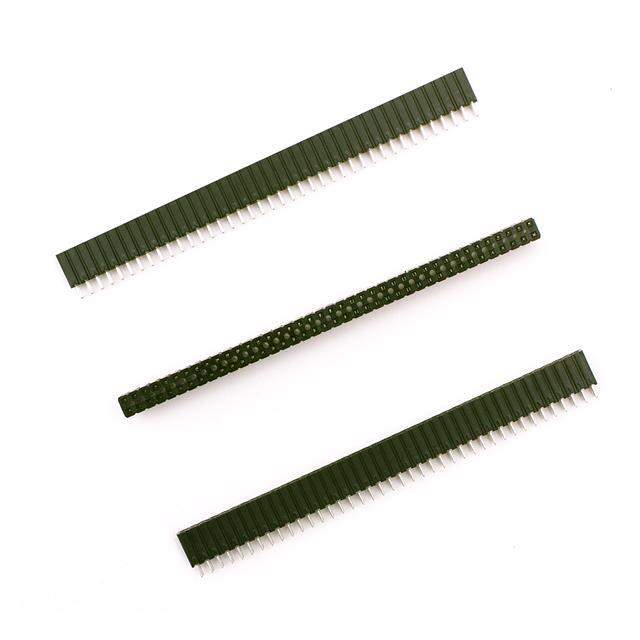

929974-01-16-RK Real Image
Same model may have multiple batches, images only for reference.

929974-01-16-RK

Part No 929974-01-16-RK
Manufacturer 3M
Catalog Rectangular Connectors
Description 3M BOARDMOUNT SOCKET, 929 SERIES / 16 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr 3M
Series 929
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Insulation Color Black
Insulation Height 0.325" (8.25mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2A
Voltage Rating 1500V
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Contact Shape Square
Contact Material Copper Alloy
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 929974
MSL Level Not Applicable
Other Names 80000909574,51111666166,7010396736,19-929974-01-16-RK
Standard Package 360
Win Source Part Number 1194751-929974-01-16-RK
Ultra Librarian 3D Model Ultra Librarian 929974-01-16-RK CAD Model

Description

The 1194751-929974-01-16-RK is a rectangular connector receptacle from the 929 series by 3M.

  • Series: 929
  • Positions: 16
  • Contacts Loaded: All
  • Contact Type: Forked
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Mounting: Through Hole
  • Contact Material: Copper Alloy
  • Voltage Rating: 1500V
  • Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
  • Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Contact Finish: Tin
  • Temperature Range: -40°C to 105°C
  • Packaging: Bulk
  • Standard Package: 360
  • Current Rating (Amps): 2A
